Gear Shifting Flluid-1/1S (Nexus)

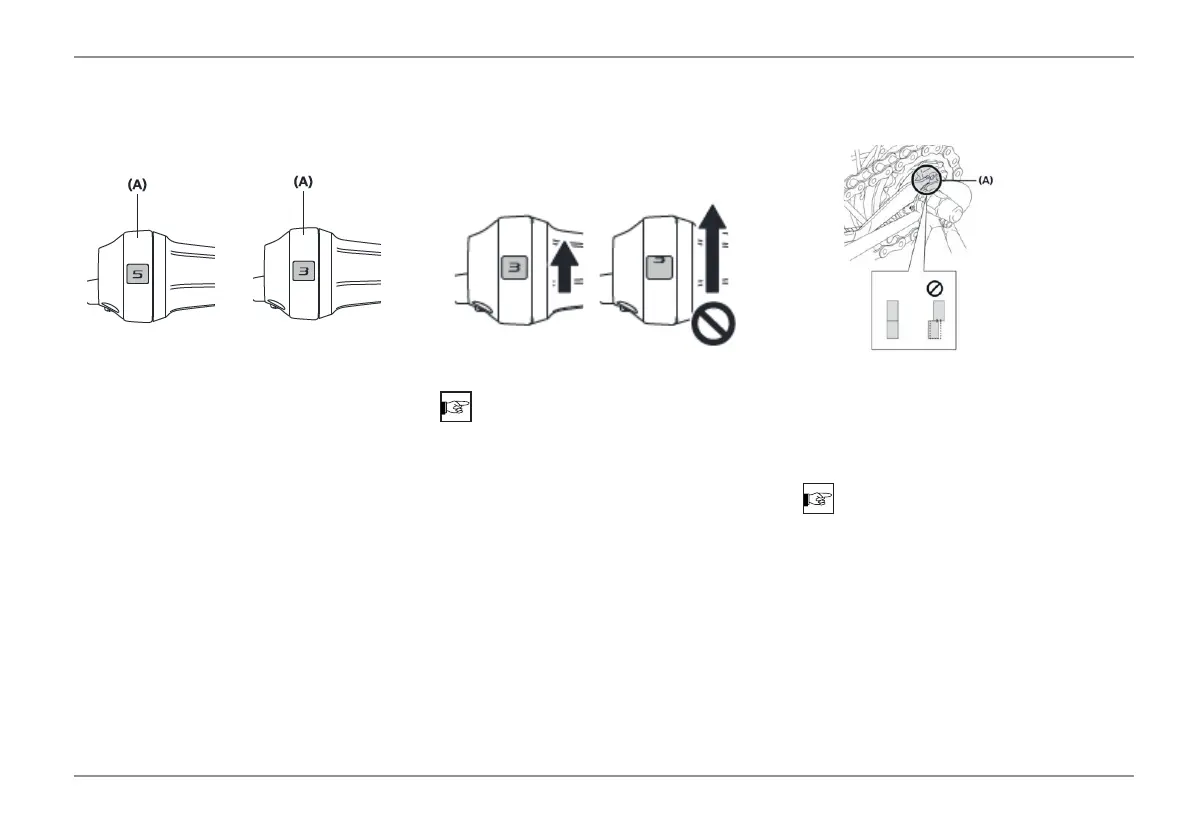

(A) Revoshift in
position 5
(B) Revoshift in
position 3
NOTE
Adjust the shifting unit gradually, using as
little force as possible to avoid over-shifting.
If you twist too much, the adjustment line
will not return to the correct position and the
adjustment lines will not be in the right place.
Setting of the shifting unit
5-gear hub gear
Make sure that the yellow adjustment lines
on the shift unit bracket and pulley are
aligned with each other.
NOTE
If the overlapping area is less than two
thirds of the respective adjustment line,
the belt may not be correctly positioned on
the sprocket while pedaling, which could
lead to abnormal noises or the pedals to
idle.
(A) Yellow adjustment lines
