Fuji Xerox ApeosPort C2570 - Staple Cartridge

-34-
Reference Guide Optional Units
Staple cartridge for side stitch
65 sheet cartridge: Staples type XH (3PCS)
50 sheet cartridge: Staples type XE (2PCS)
Note

Install the 65 sheet cartridge after removing the 50 sheet cartridge. Please carefully store the removed
50 sheet cartridge.

You cannot use the cartridge and staple case for different numbers of sheets. (Make sure to use type XE
for 50 sheet cartridge and type XH for 65 sheet cartridge.)

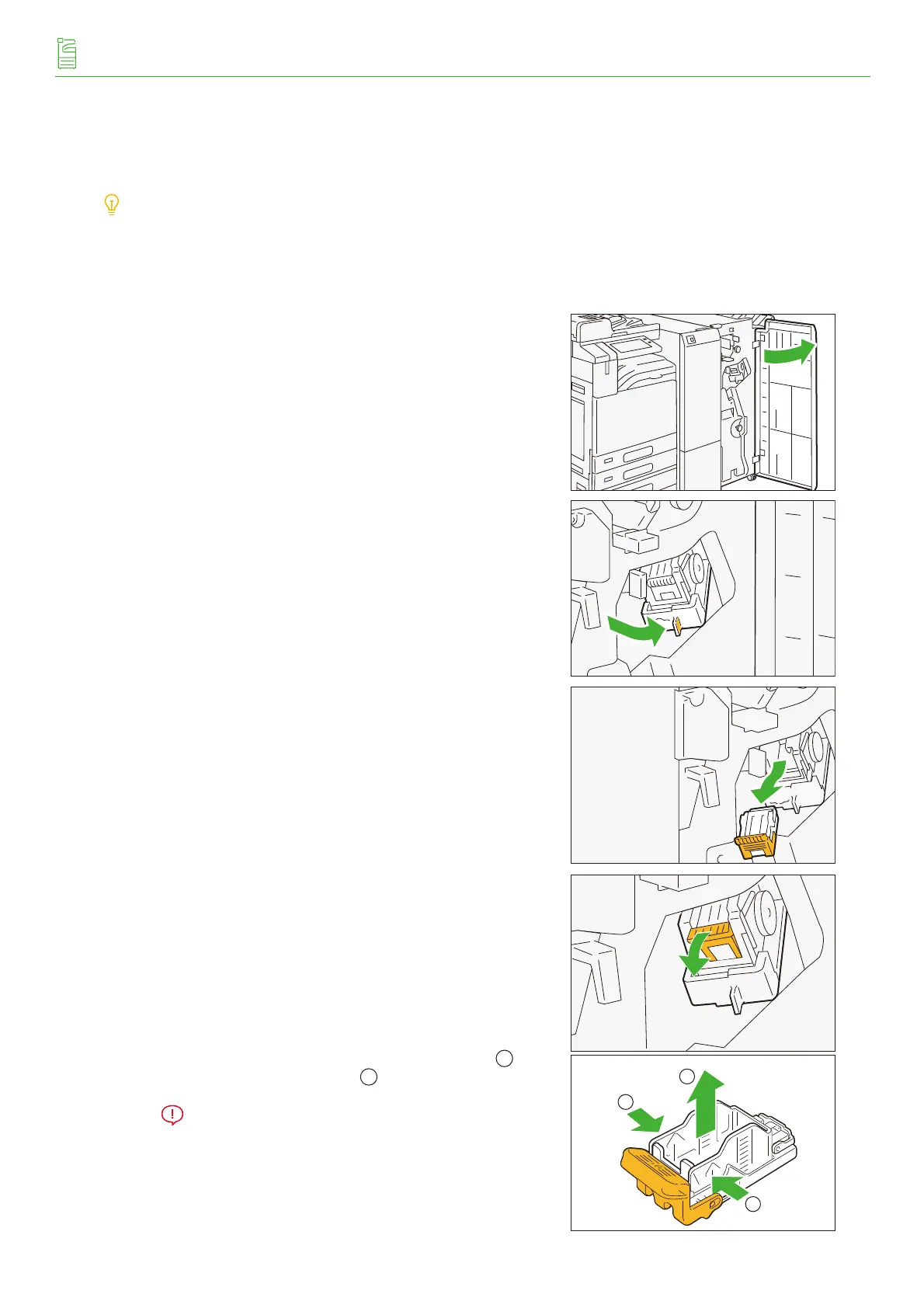

1. Confirm that the machine is not operating, and open
the Cover.
2. Hold [R1] and move the stapler unit to the front.
3. Hold the lever and remove the cartridge.
When using the 65 sheet cartridge, flip the lever down and
remove the cartridge.
4. Pinch both sides of the empty staple case ( ) and
remove it from the cartridge ( ).
Important
If there are still staples in the staple case, you cannot
remove the staple case. Forcefully removing the sta-
ple case may cause malfunction.
2
1
1
1
2
