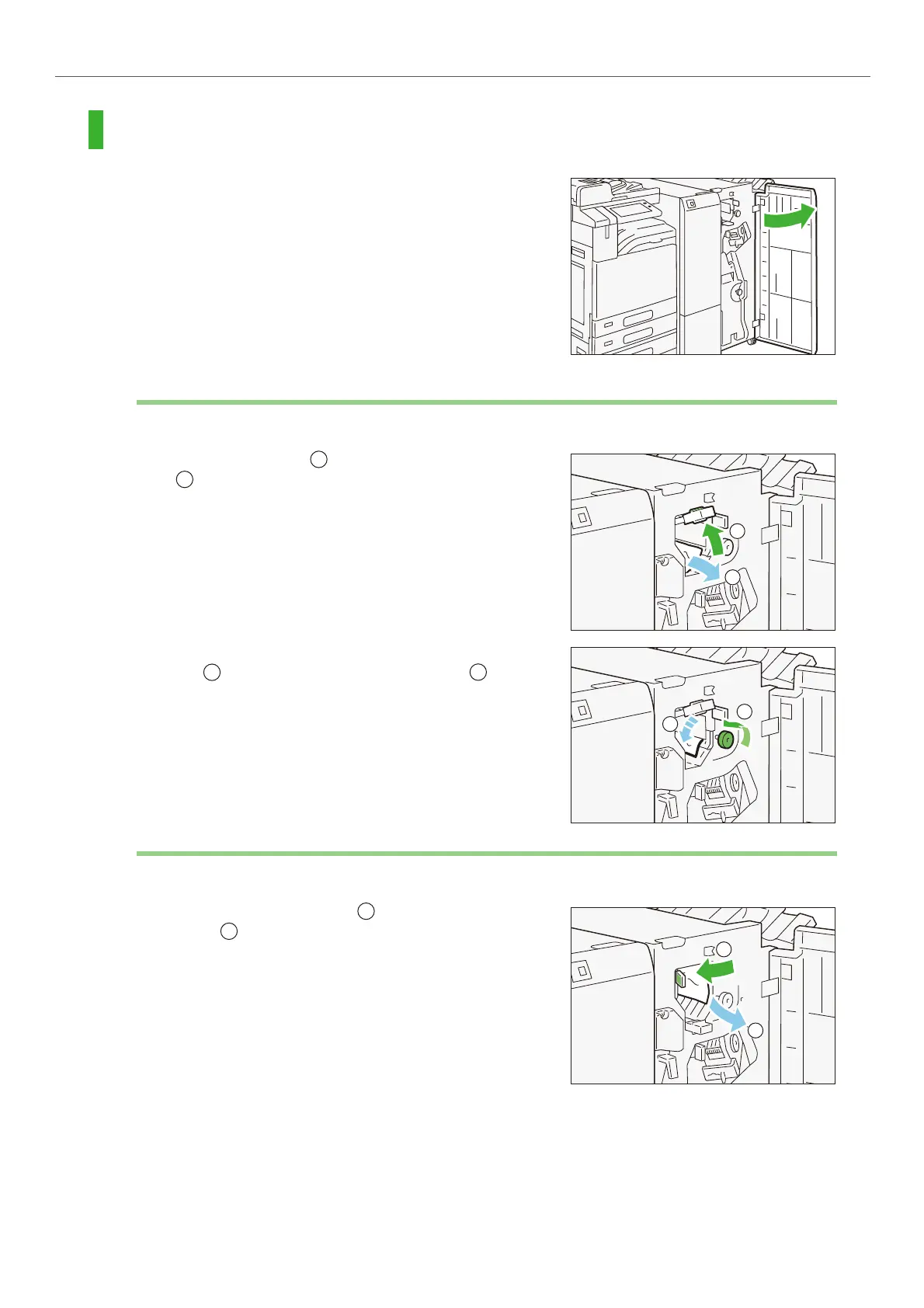

v Finisher C
Inside of the Cover
1. Open the Cover.
 p.43 Lever [3a]
 p.43 Lever [3c]
 p.44 Lever [3d]
 p.44 Booklet Maker
Lever [3a]
(1) Open lever [3a] up ( ) and remove the jammed paper
().
(2) If it’s difficult to remove the paper, turn knob [3b] to the
left ( ) and send out the jammed paper ( ).
(3) Return lever [3a].
Lever [3c]
(1) Open lever [3c] to the left ( ) and remove the jammed
paper ( ).
(2) Return lever [3c].
