Fuji Xerox DocuPrint CP405 d

Maintenance 247

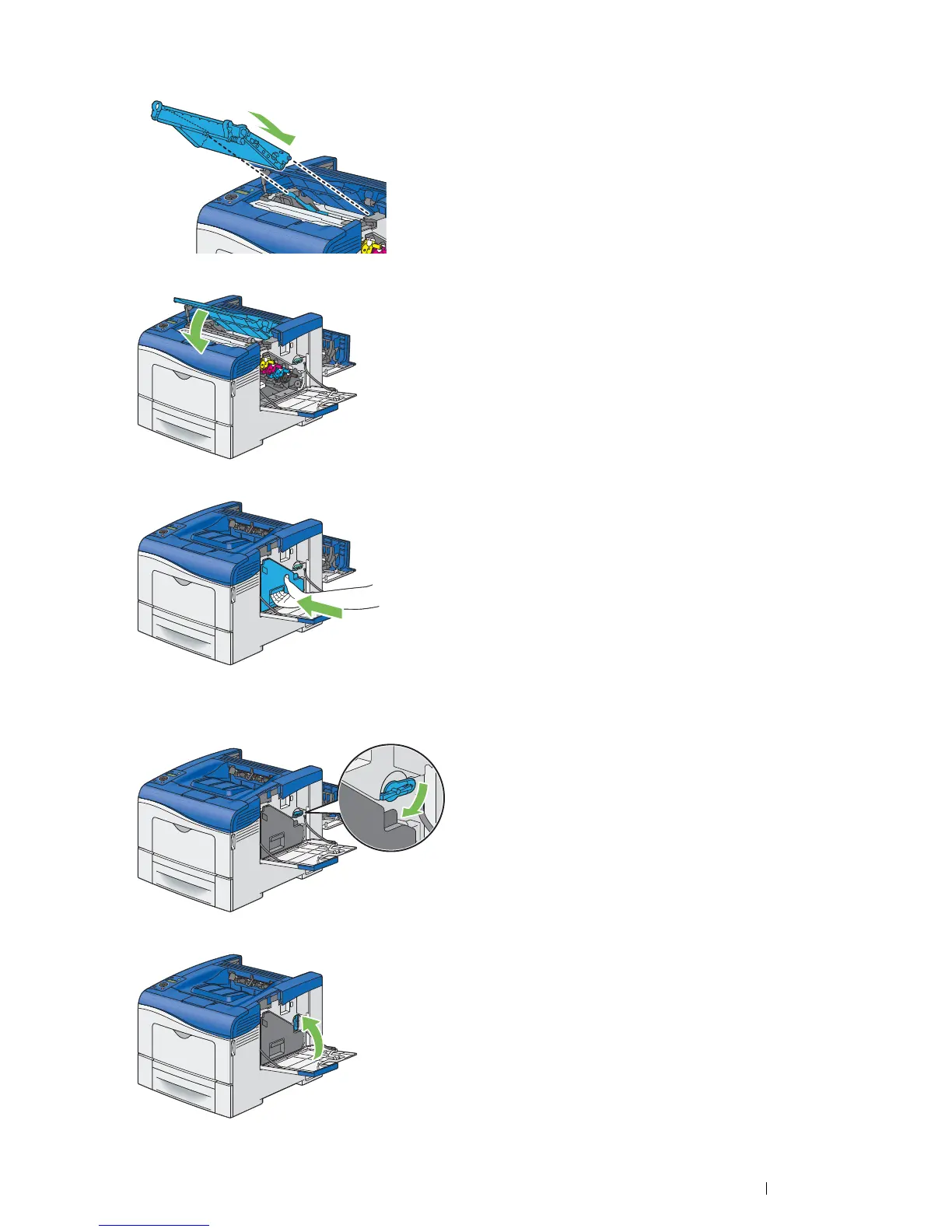

10 Reinsert the belt unit into the printer.
11 Close the top cover.
12 Reinsert the removed waste toner box.
NOTE:
• If the waste toner box does not fit into place properly, make sure that the belt unit is fully inserted.
13 Turn the waste toner box lock lever 90-degrees clockwise to lock the waste toner box.
14 Close the side cover.
