268 Maintenance

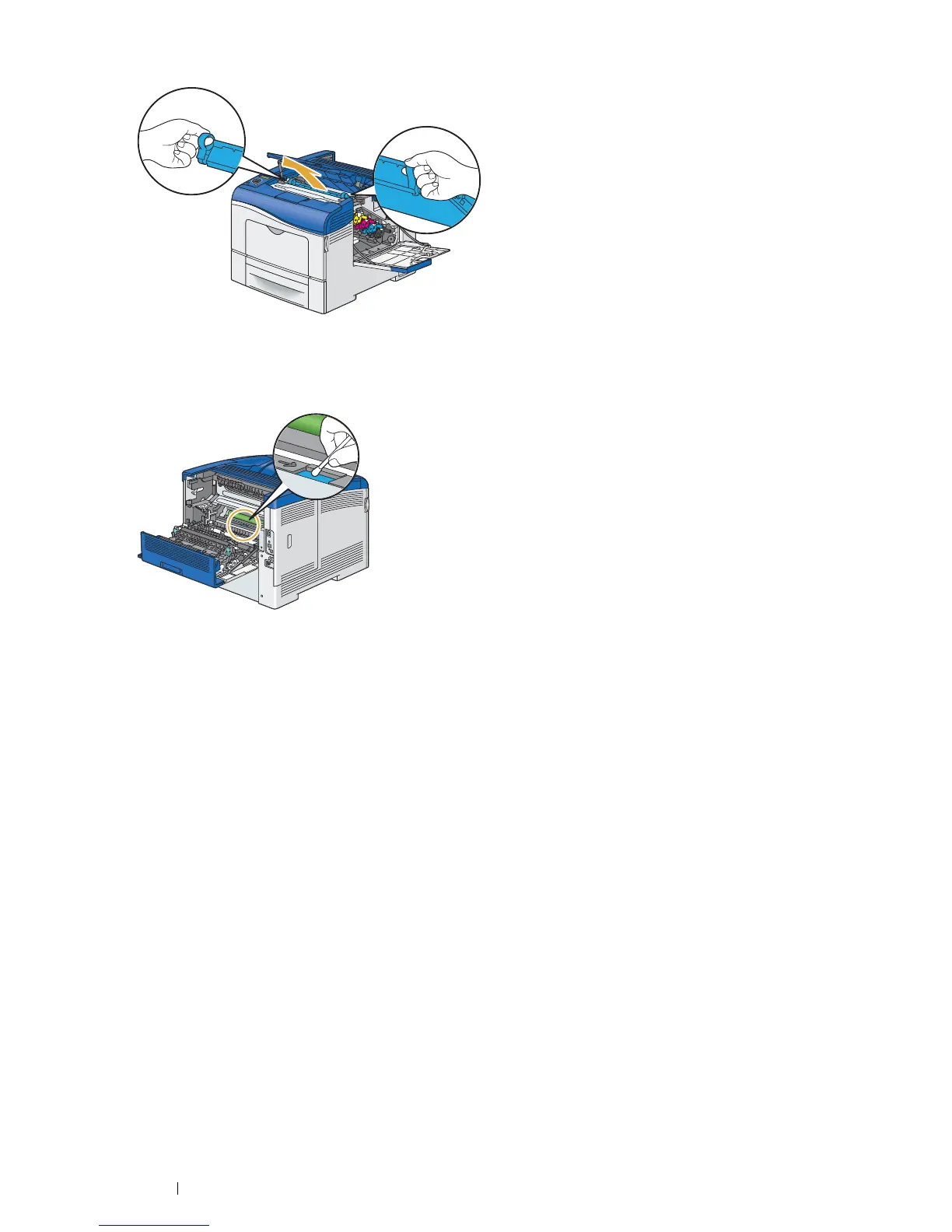

7 Put your fingers through the loops on both sides of the belt unit, and then pull it out.
IMPORTANT:
• If you cannot pull out the unit from the printer, make sure that all of the above procedures are performed properly.
8 At the rear of inside the printer, clean the CTD sensor with a clean dry cotton swab.
