Maintenance 289

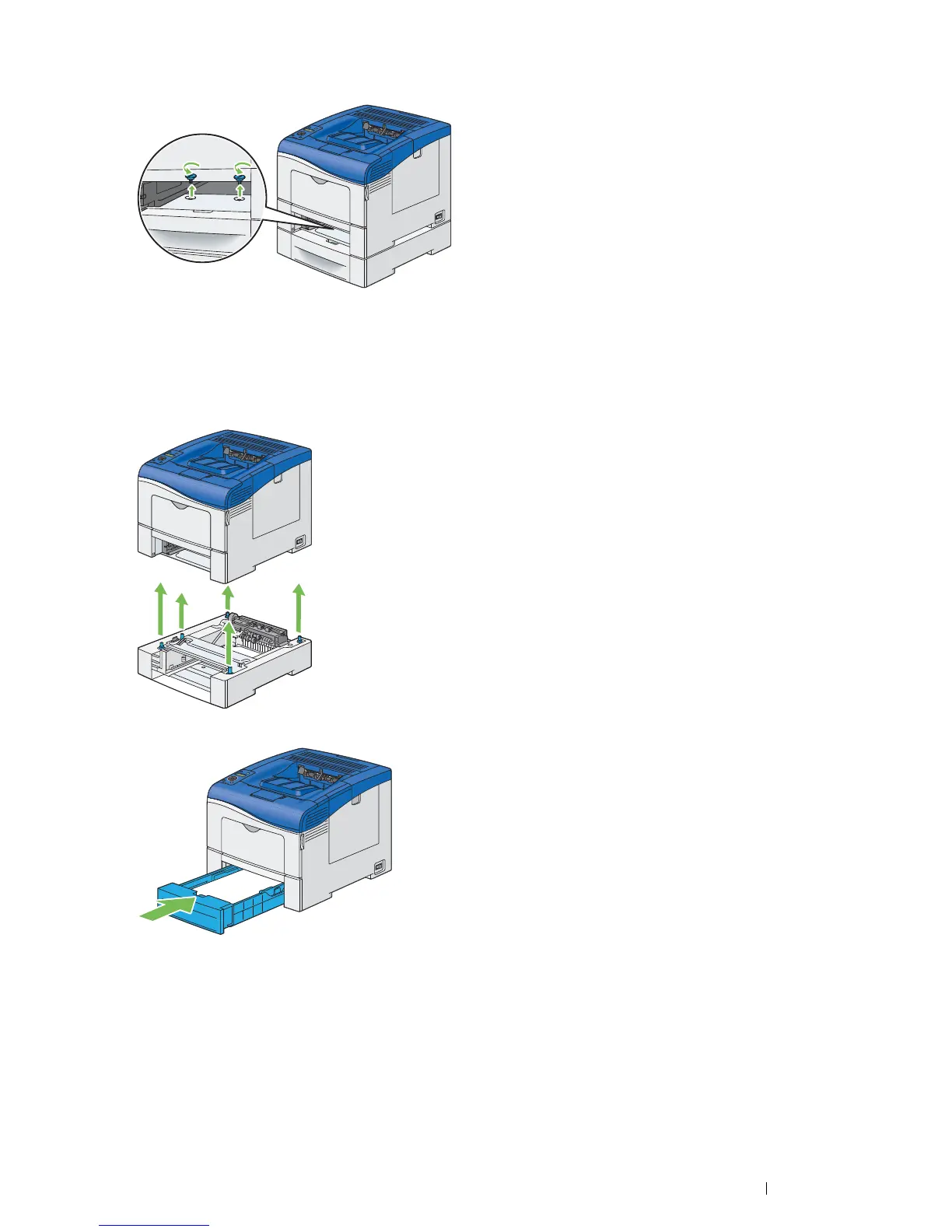

4 Remove the two screws joining the printer and the optional 550 sheet feeder by unscrewing them with a coin or
similar object.
NOTE:
• The screw hole is located in 216 mm recess from the front of the printer.
5 Gently lift the printer off the optional 550 sheet feeder, and place it on a level surface.
IMPORTANT:
• When lifting the machine, make sure to follow the precautions stated in "Machine Installation" on page 16
6 Insert the standard 550 sheet tray into the printer, and push until it stops.
IMPORTANT:
• Do not use excessive force on the tray. Doing so could damage the tray or the inside of the printer.
7 Reconnect all cables into the rear of the printer and turn on the printer.
To Next Page
