Chapter 1 BEFORE USING THE INVERTER
1.1 Acceptance Inspection
Unpack the package and check that:
(1) An inverter and instruction manual (brief manual) are contained in the package.
(2) The inverter has not been damaged during transportation—there should be no dents or
parts missing.
(3) The inverter is the model you ordered. You can check the model name and specifications on
the main nameplate. (Main and sub nameplates are attached to the inverter and are located
as shown on the next page.)

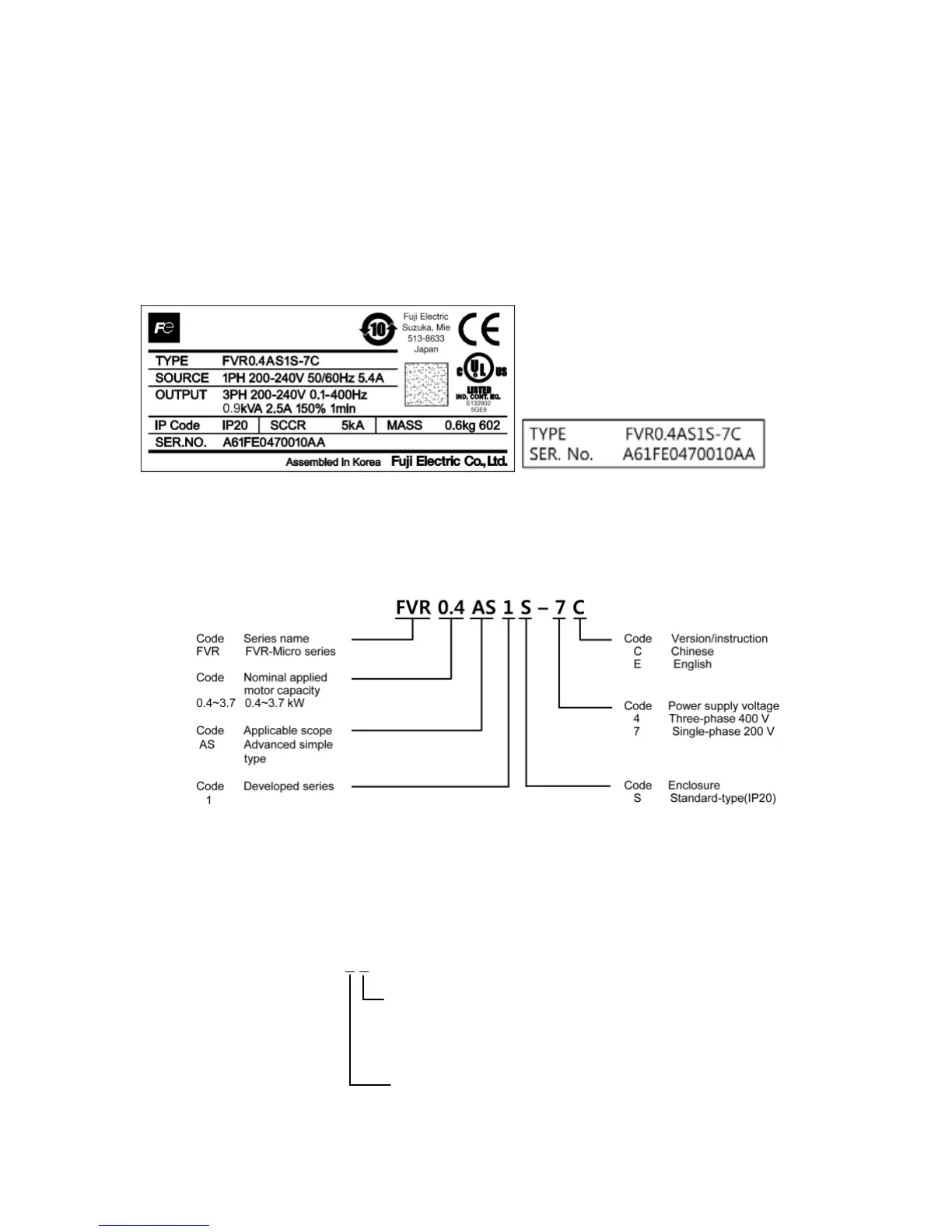

(a) Main Nameplate (b) Sub Nameplate
Figure 1.1
Nameplates
TYPE: Type of inverter
SOURCE: Number of input phases (three-phase: 3PH, single-phase: 1PH), input voltage,
input frequency, input current
OUTPUT: Number of output phases, rated output capacity, rated output voltage,
output frequency range, rated output current, and overload capacity
SER. No.: Product number
A 7 5 FE 715 1 0003 AA
Production month
Production year: Last digit of year
To Next Page
