FujiFilm FVR-Micro - Analog Output; Function; Voltage Adjustment

F30
Analog Output [FMA] (Voltage adjustment)
F31
Analog Output [FMA] (Function)
These function codes allow terminal [FMA] to output monitored data such as the output frequency
and the output current in an analog DC voltage. The magnitude of the output voltage is adjustable.

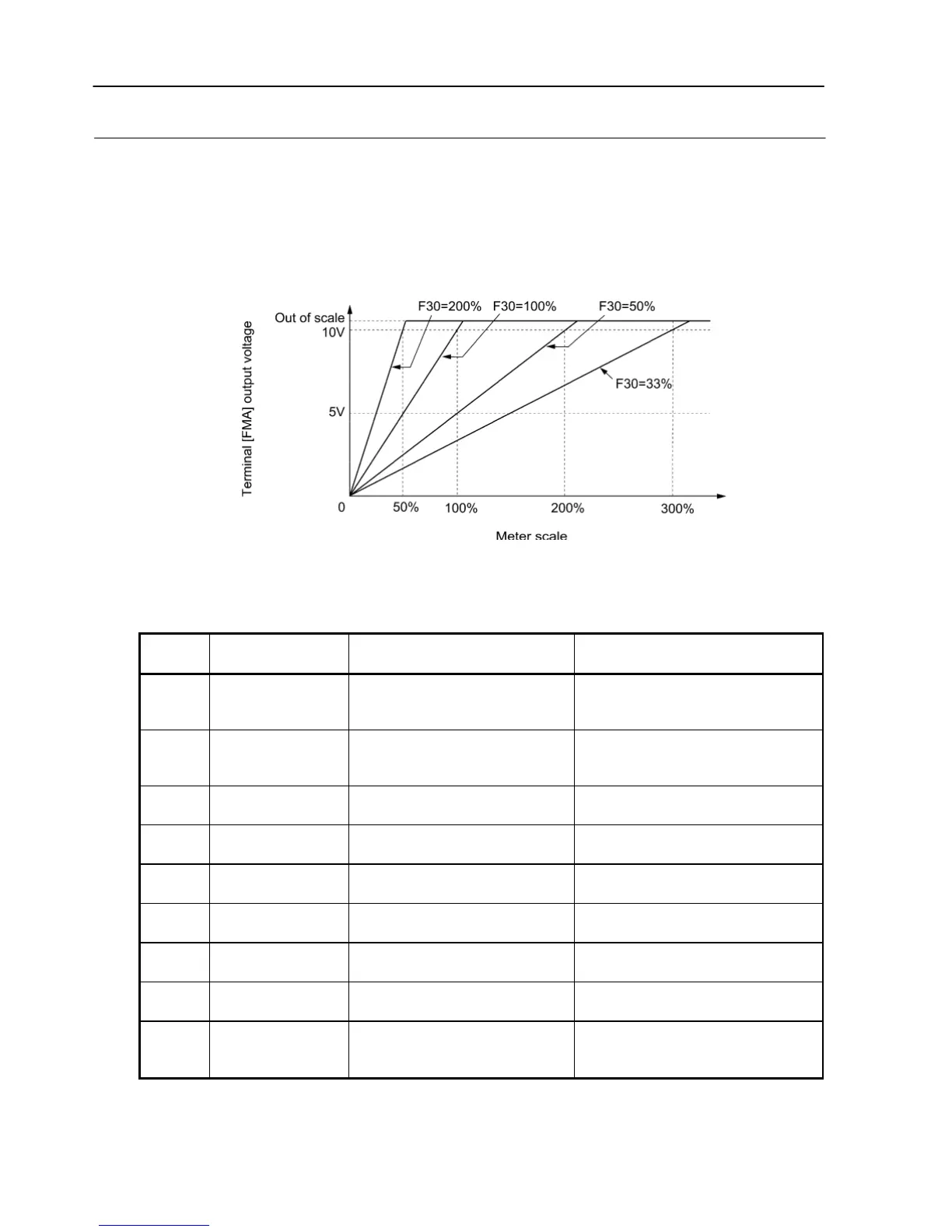

 Voltage adjustment (F30)
F30 adjusts the output voltage representing the monitored data selected by F31 within the range of
0 to 300%.
 Function (F31)
F31 specifies what is output to analog output terminal [FMA].
Data f or
F31
[FM] output
Function
(Monitor the f ollowing)
Meter scale
(Full scale at 100%)
0
Output frequency
(before slip
compensation)
Output frequency of the inverter
(Equivalent to the motor
synchronous speed)
Maximum frequency (F03)
1
Output frequency
(after slip
compensation)
Output frequency of the inverter
Maximum frequency (F03)
2 Output current
Output current (RMS) of the
inverter
Twice the inverter rated current
3 Output voltage
Output voltage (RMS) of the
inverter
250 V for 200 V class series,
500 V for 400 V class series
7
PID feedback
amount
Feedback amount under PID
control
100% of the feedback amount
9
DC link bus
voltage
DC link bus voltage of the
inverter
500 V for 200 V class series,
1000 V for 400 V class series
14 Calibration
Full scale output of the meter
calibration
This always outputs +10 VDC
(FMA function).
15
PID command
(SV)
Command value under PID
control
100% of the PID command value
16
PID output (MV)
Output level of the PID
controller under PID control
(Frequency command)
Maximum frequency
(F03)
5-38
