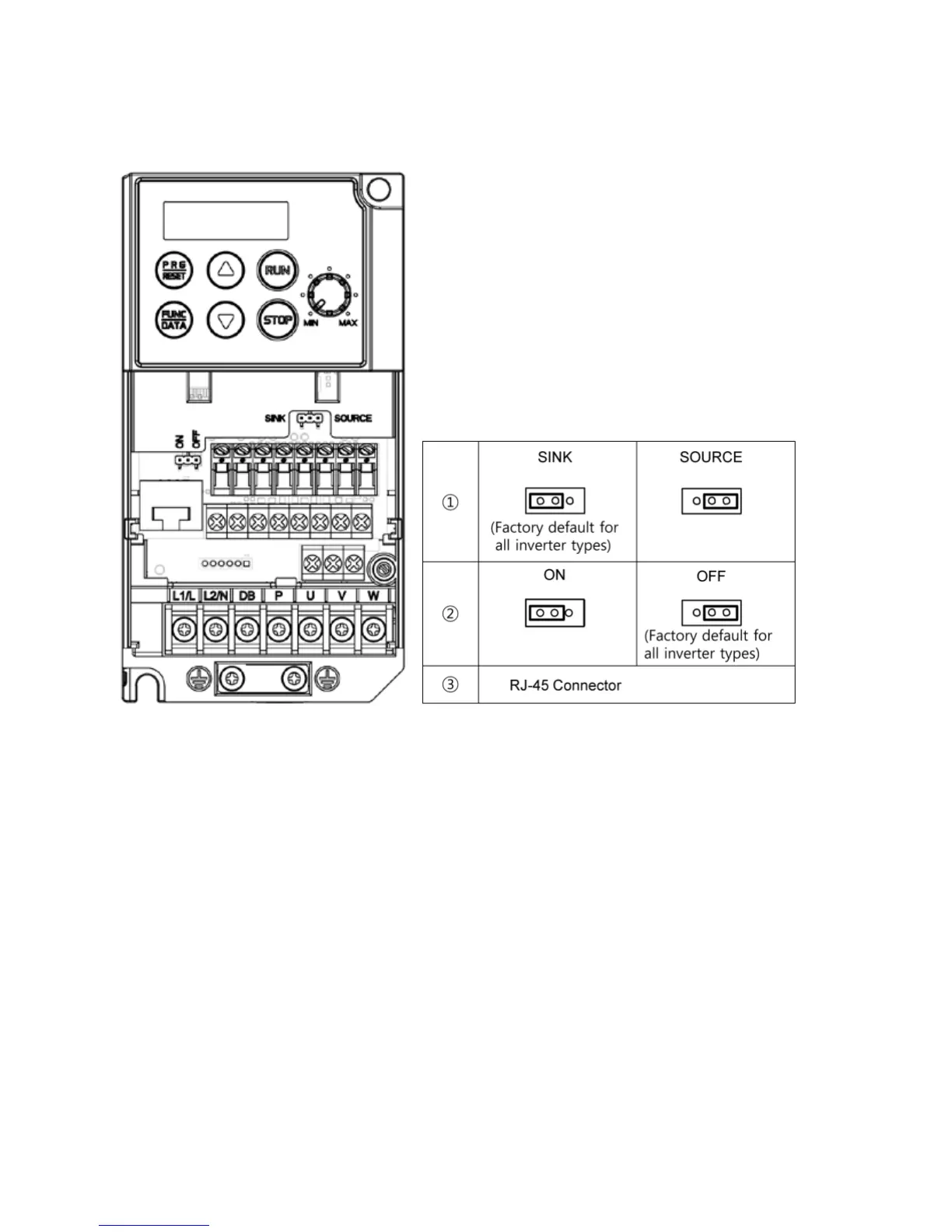

Figure 2.11 shows the locations of jumper switches and the RJ-45 connector.
Figure 2.11 Locations of Jumper Switches and RJ-45 Connector
③
①
②
2-18
