2.3.5 Wiring for main circuit terminals and grounding terminals
Follow the procedure below. Figure 2.3 illustrates the wiring procedure with peripheral equipment.
Wiring procedure
①
Grounding terminal G*
1
②
Inverter output terminals (U, V, and W) and grounding terminal G*
1
③ Braking resistor connection terminals (P and DB)*
2
④ Main circuit power input terminals (L1/R, L2/S and L3/T) or (L1/L and L2/N)
*
1
Use either one of these two grounding terminals on the main circuit terminal block.
*
2
Perform wiring as necessary.

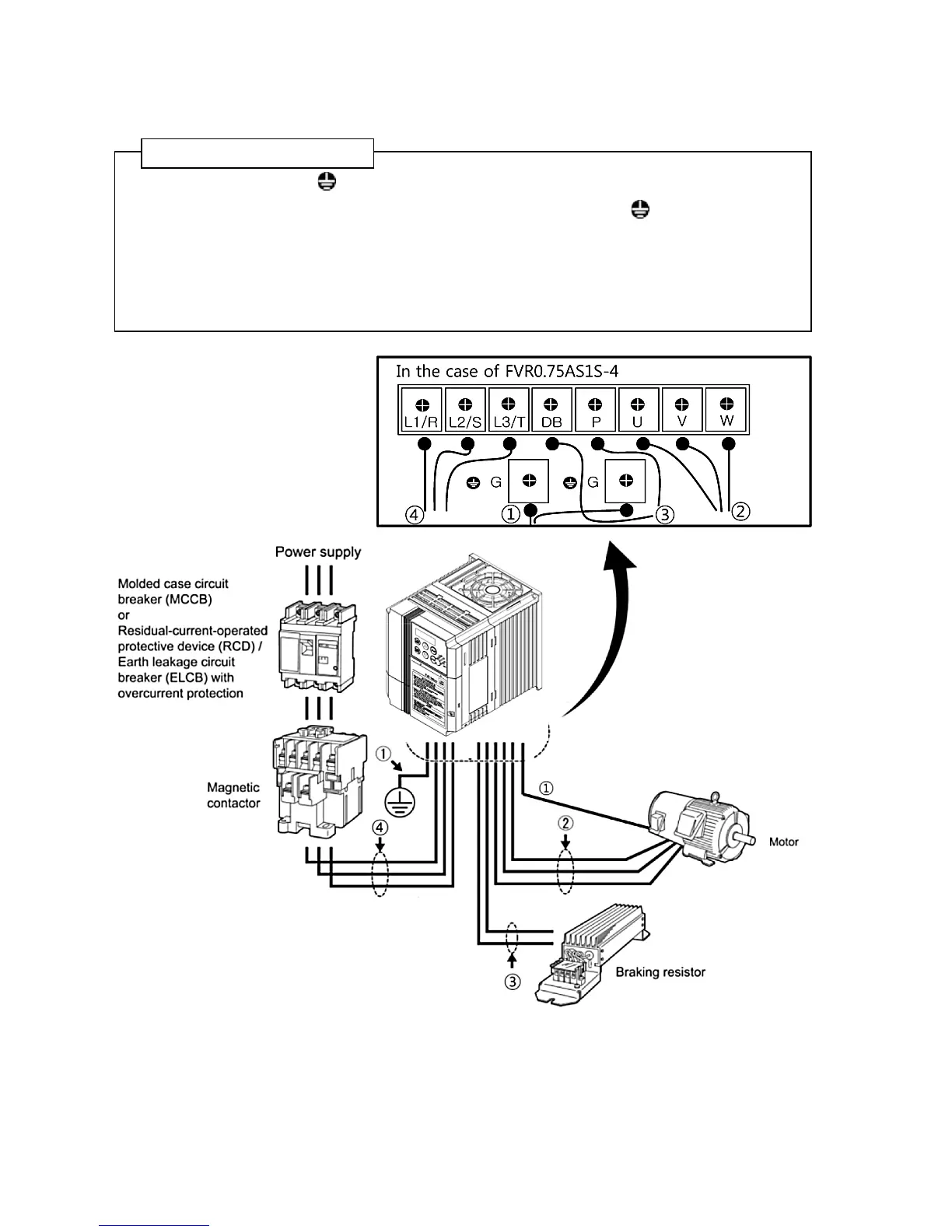

Figure 2.3 Wiring Procedure for Peripheral Equipment
2-7
