1-1. COOLING OPERATION
A sensor (room temperature thermistor) built in the indoor unit will usually perceive
difference or variation between a set temperature and present room temperature,
and controls the operation speed of the compressor.
* If the room temperature is 2 °C higher than a set temperature,
the compressor operation speed will attain to maximum speed.
* If the room temperature is some degree lower than setting temperature,
the compressor is likely to stop.
* When the room temperature is between +2 °C to -2.5 °C of the setting temperature,
the compressor speed is controlled within the range shown in Table 1.
However, the maximum speed is limited in the range shown in Figure 1 based
on the fan speed mode and the outdoor temperature.
minimum
speed
maximum
speed
AO*A30LFTL
AO*A36LFTL
AOTA30LGTL
16rps 72rps
Outdoor air
temperature

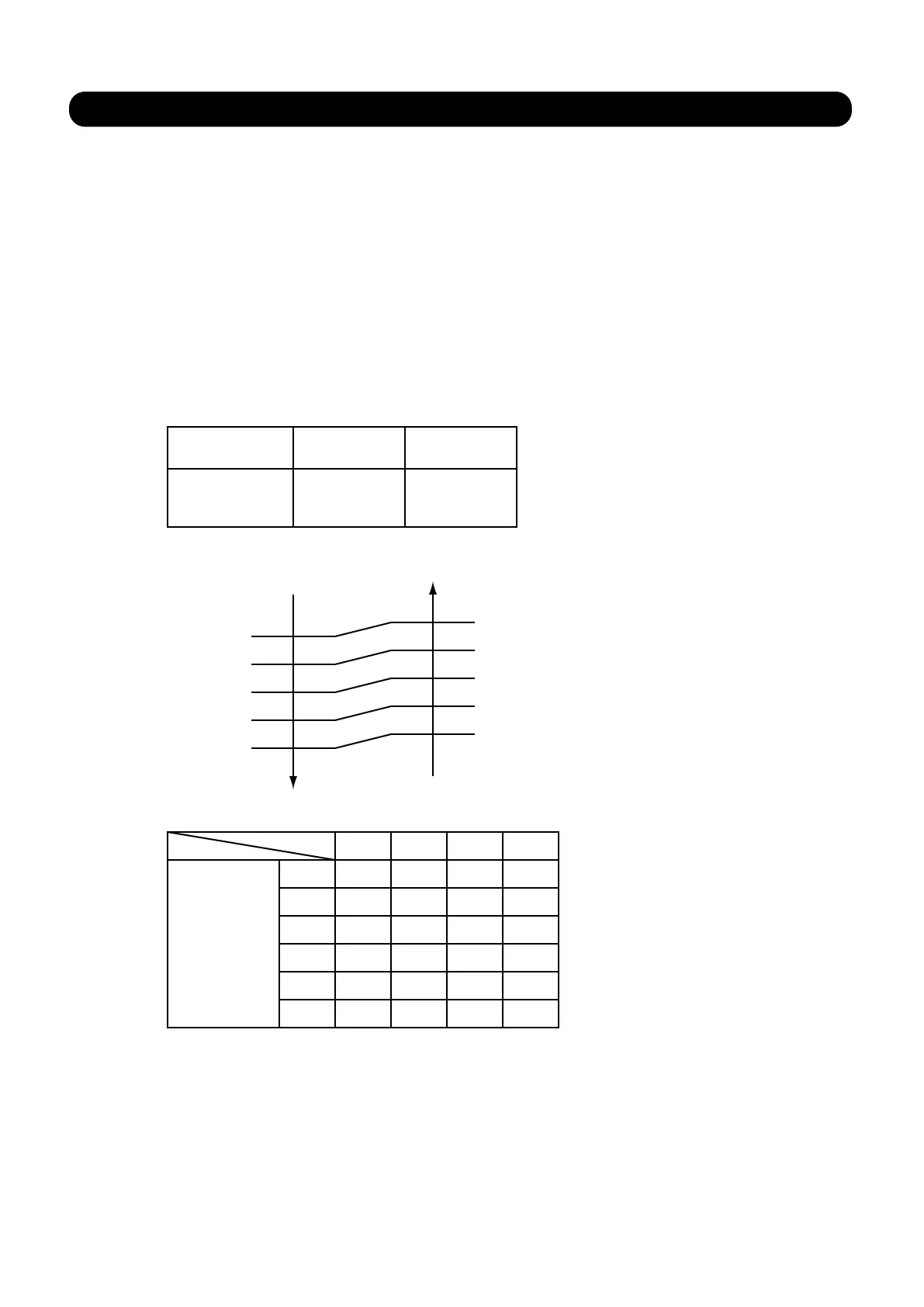

( Table 1 : Compressor Speed Range )
( Fig.1 : Limit of Maximum Speed based on Outdoor Temperature )
01-01
A zone
B zone
C zone
D zone
E zone
F zone
Me Lo QuHi
A zone
36°C
34°C
B zone
32°C
30°C
C zone
21°C
19°C
D zone
12°C
10°C
E zone
2°C
0°C
F zone
When the room
temperature drops
When the room
temperature rises
AO*A30LFTL
AO*A36LFTL
AOTA30LGTL
Fan speed mode
72rps 50rps 42rps 29rps
72rps 50rps 42rps 29rps
56rps 42rps 37rps 29rps
42rps 37rps 32rps 20rps
42rps 37rps 32rps 20rps
42rps 37rps 32rps 20rps
