SERVICE PARTS INFORMATION 2
Inverter Compressor
02-34

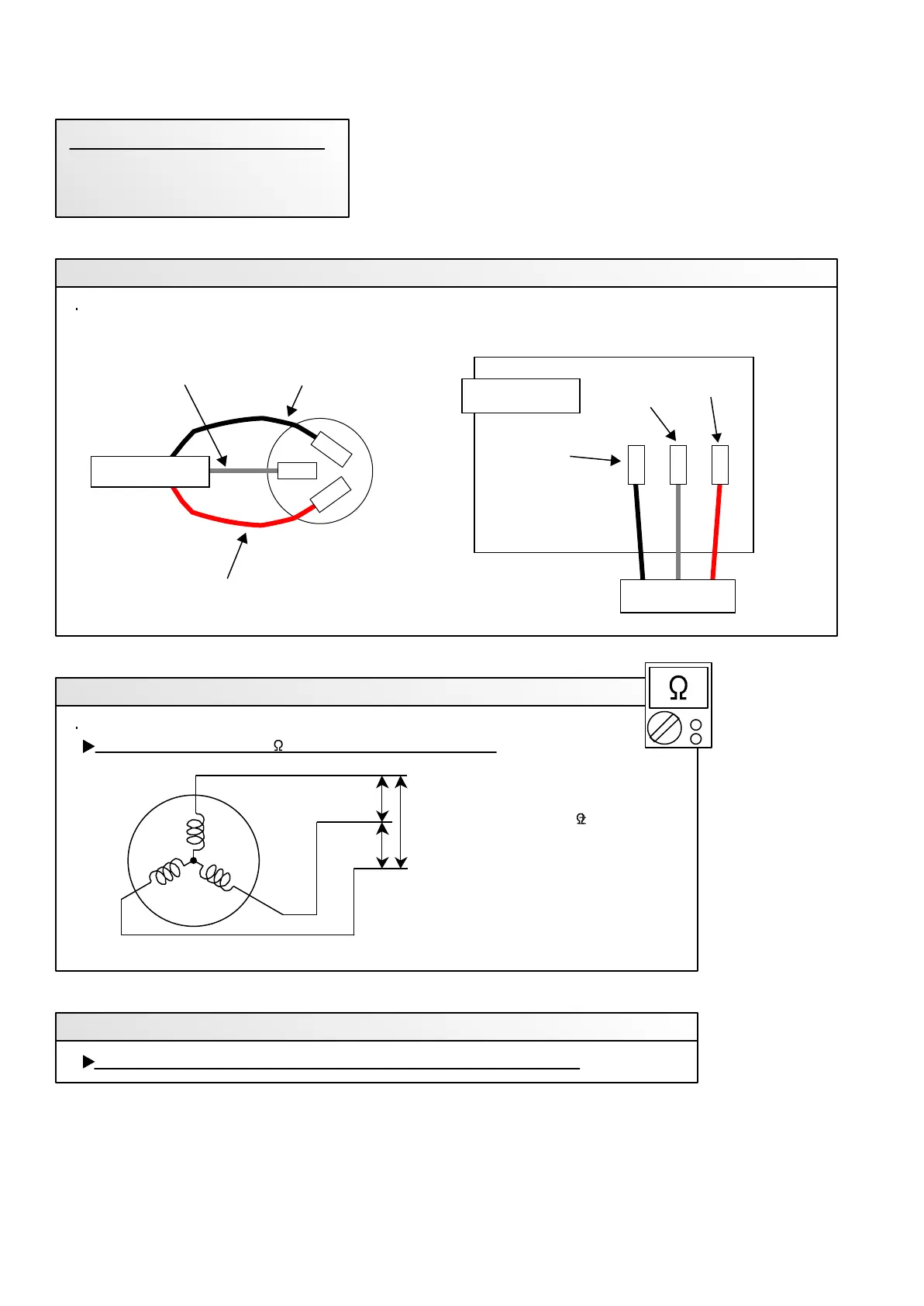

Check Point 1 : Check connection
Check Point 2 : Check winding resistance
Check Point 3 : Replace Transistor PCB
R(U)
S(V)
T(W)
Check terminal connection of Compressor.
(Loose or incorrect wiring)
Check winding resistance of each terminal.
If the resistance value is 0 or infinite, replace Compressor.
If Check Point 1, 2 do not improve the symptom, replace Transistor PCB.
Resistance value : 0.642 8%
(at 20°C)
R(U) RED
S(V) WHITE T(W) BLACK
Transistor PCB
Check connection of Transistor PCB.
(Loose or incorrect wiring)
TM303
TM304
TM305
RED
WHITE
BLACK
Transistor PCB
Compressor
To Next Page
