5. CONTROL SYSTEM

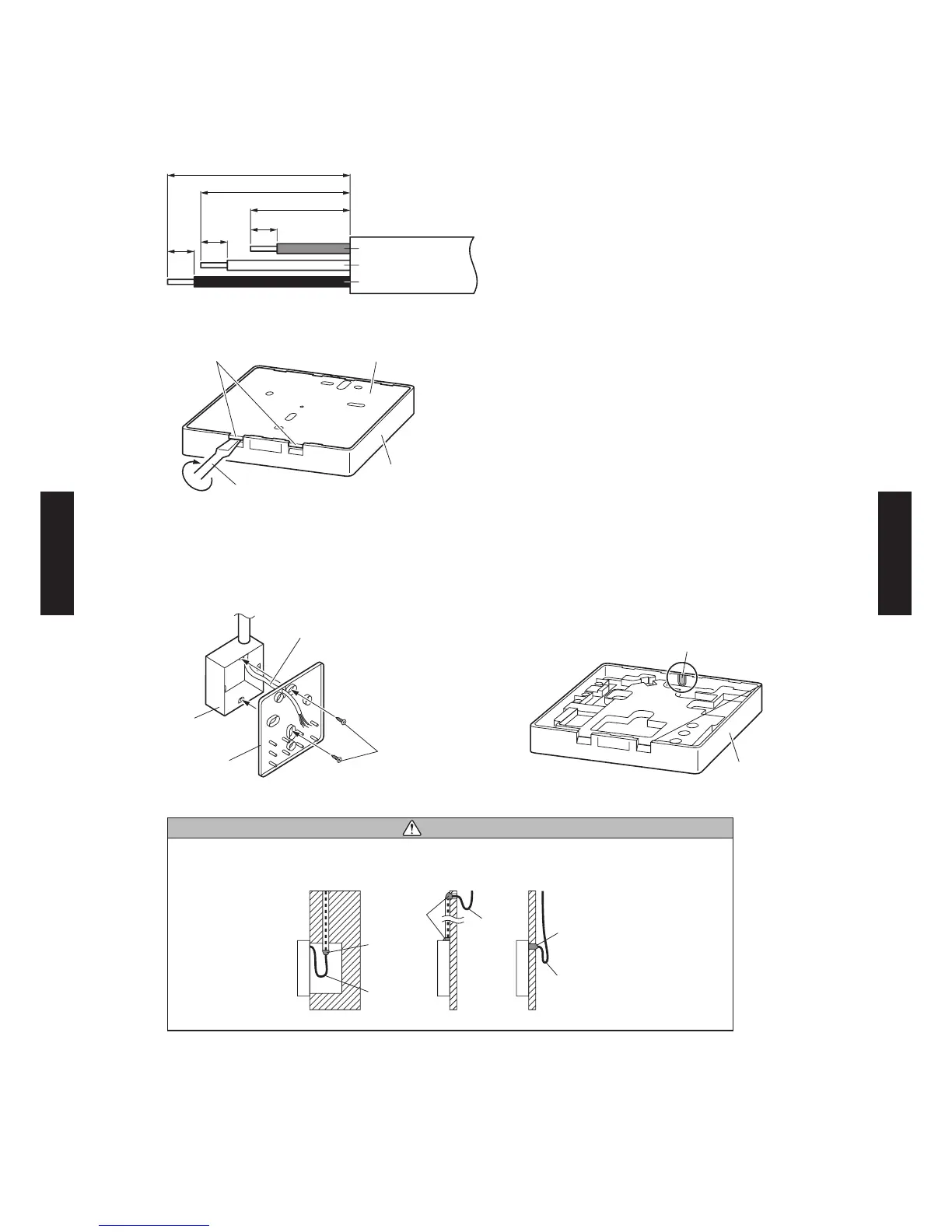

INSTALLATION

1) Remove the insulation of the remote controller cable.
8
8
8
30
45
55
(Unit: mm)
1. 12V (Red)
2. Signal (White)
3. COM (Black)
 nsert a atbade screwdrier and reoe the ront case and rear case b twisting it sight.
Flat screwdriver
Front case
Hooks (2 places)
Rear case
3) Install the rear case to the wall, box, etc. with 2 screws (M4 × 16 mm). Fix the 2 screws in
either horizontal or vertical position.
B. When the cable is along the wall:
Mount the rear case on the wall.
Cut off a hole for cabling in the front case.
Front case
Cut off
A. When mounting on the box:
Attach the case after leading the cable.
Screws
Box
Remote controller cable
Rear case
CAUTION
When connecting the remote controller cable, take measures to prevent water or insects 
coming into the remote controller through the cable, such as to provide a trap or close the
hole for cabling with putty.
Putty
Putty
Putty
Trap
Trap
Trap
4) Setting up the DIP switch. Refer to "6. SYSTEM DESIGN".
- (05 - 10) -
CONTROL SYSTEM CONTROL SYSTEM

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
