5. CONTROL SYSTEM

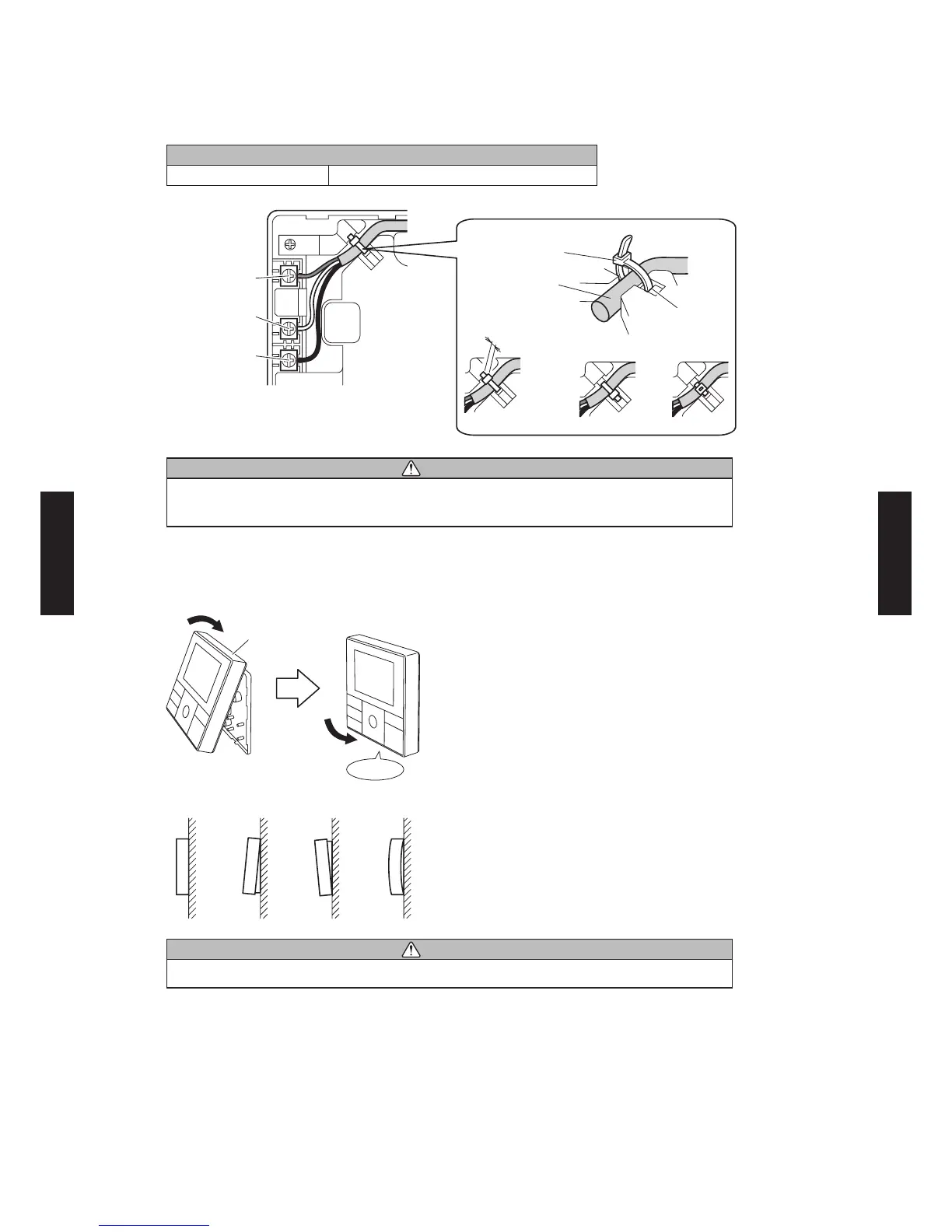

5) Connect the cable to the terminals on the front case. Fix the cable together with the sheath
with the cable tie. Cut off the excess cable tie.
Tightening torque
Terminal screw . to .  
1. 12V (Red)
2. Signal (White)
3. COM (Black)
Cable tie
Hole for cable tie
Remote controller
cable (sheath)
2 mm
(3/32 in.)
No good
Good
No good
CAUTION
Be careful to avoid breaking the cable by over-tightening the cable tie.
When connecting the remote controller cables, do not over-tighten the screws.
6) Attach the front case.
Insert after adjusting upper part of front case.
When inserting the front case, do not pinch the cable.
Front case
Good
Click!
No good No good No good
CAUTION
Insert the upper case firmly. If improperly attached, it will cause the upper case to fall off.
- (05 - 11) -
CONTROL SYSTEM CONTROL SYSTEM

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
