Fujitsu ASYA18L User Manual

En-11

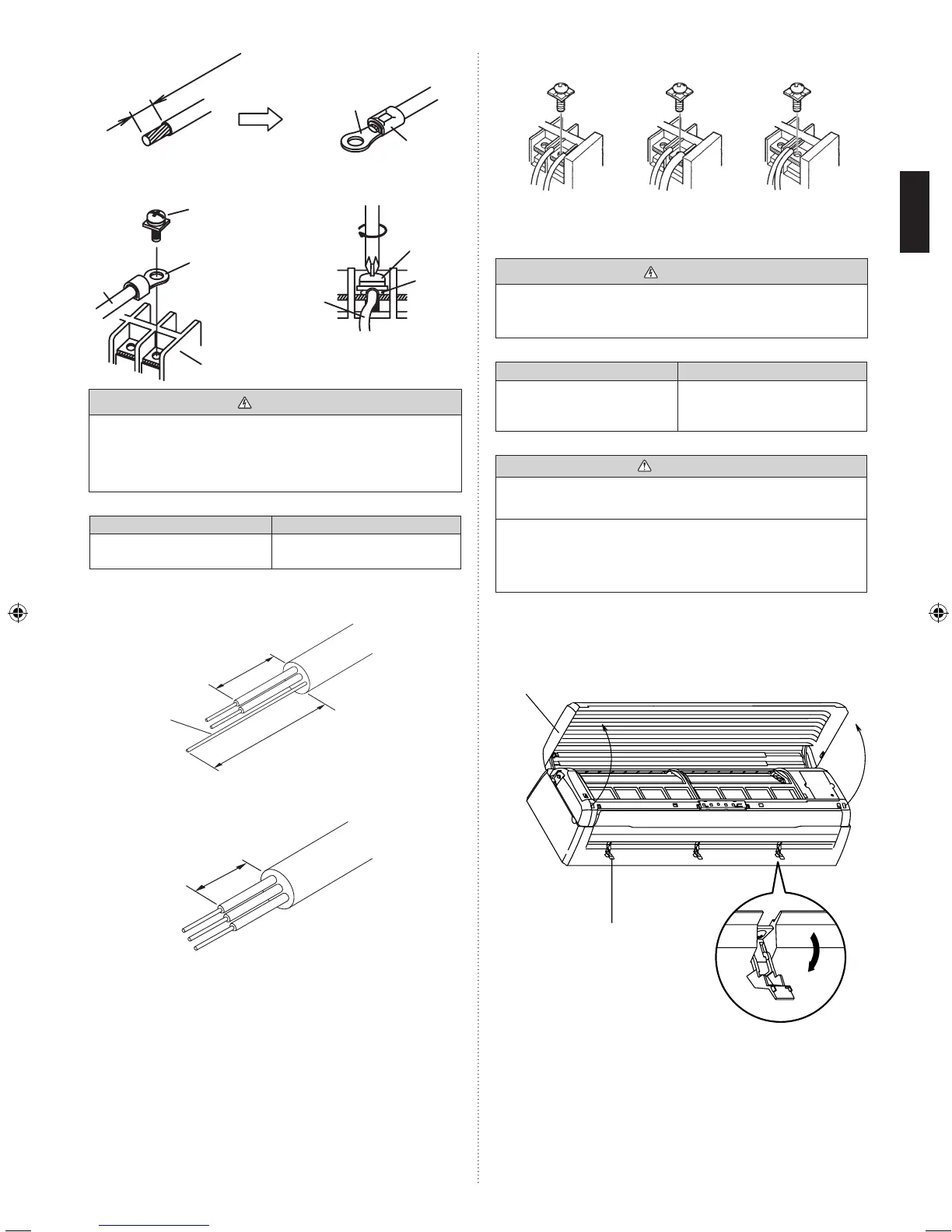

Strip 10 mm
Ring terminal
Sleeve
Screw with
special washer
Cable
Ring terminal
Terminal block
Screw with
special
washer
Cable
Ring
terminal
WARNING
•Useringterminalsandtightentheterminalscrewstothe
speciedtorques,otherwise, abnormal overheating may
be produced and possibly cause heavy damage inside
the unit.
Terminal number Tightening torque
M4 screw
(Powersupply/L,N,GND)
1.2 to 1.8 N·m
(12 to 18 kgf·cm)
6.3.2. Transmission and Remote control cable
80 mm
30 mm
Shielded
cable(nolm)
Transmission cable
Remote control cable
30 mm
• Connectremotecontrolandtransmissioncablesasshown
in Fig. B.
• Whenthetwocablesareattached.
Fig. B
Different
diameter
Connect to
one side
NOGOOD NOGOOD
OK
WARNING
•Tighten the terminal screws to the specified torques,
otherwise, abnormal overheating may be produced and
possibly cause heavy damage inside the unit.
Terminal number Tightening torque
M4 screw
(Transmission/X1, X2)
(Remote control/Y1, Y2, Y3)
0.8 to 1.2 N·m
(8 to 12 kgf·cm)
CAUTION
•Topeelthelmfromtheleadcable,useadedicatedtool
that will not damage the conductor cable.
•Wheninstallingascrewontheterminalblock,donotcut
the cable by overtightening the screw. On the other hand,
an undertightened screw can cause faulty contact, which
will lead to a communication failure.
• Removeitwiththefollowingsequenceincaseofthestate
with the grille.
(1) Open the intake grille.
Screw cover
Intake grille
9371057033-02_IM_en.indd 11 2/20/2009 3:13:34 PM
