En-8
(
4
Left rear piping)
About 380 mm
Connection piping
(Liquid pipe)
Connection piping
(Gaspipe)
Bend (R100) with
a pipe bender
About 460 mm

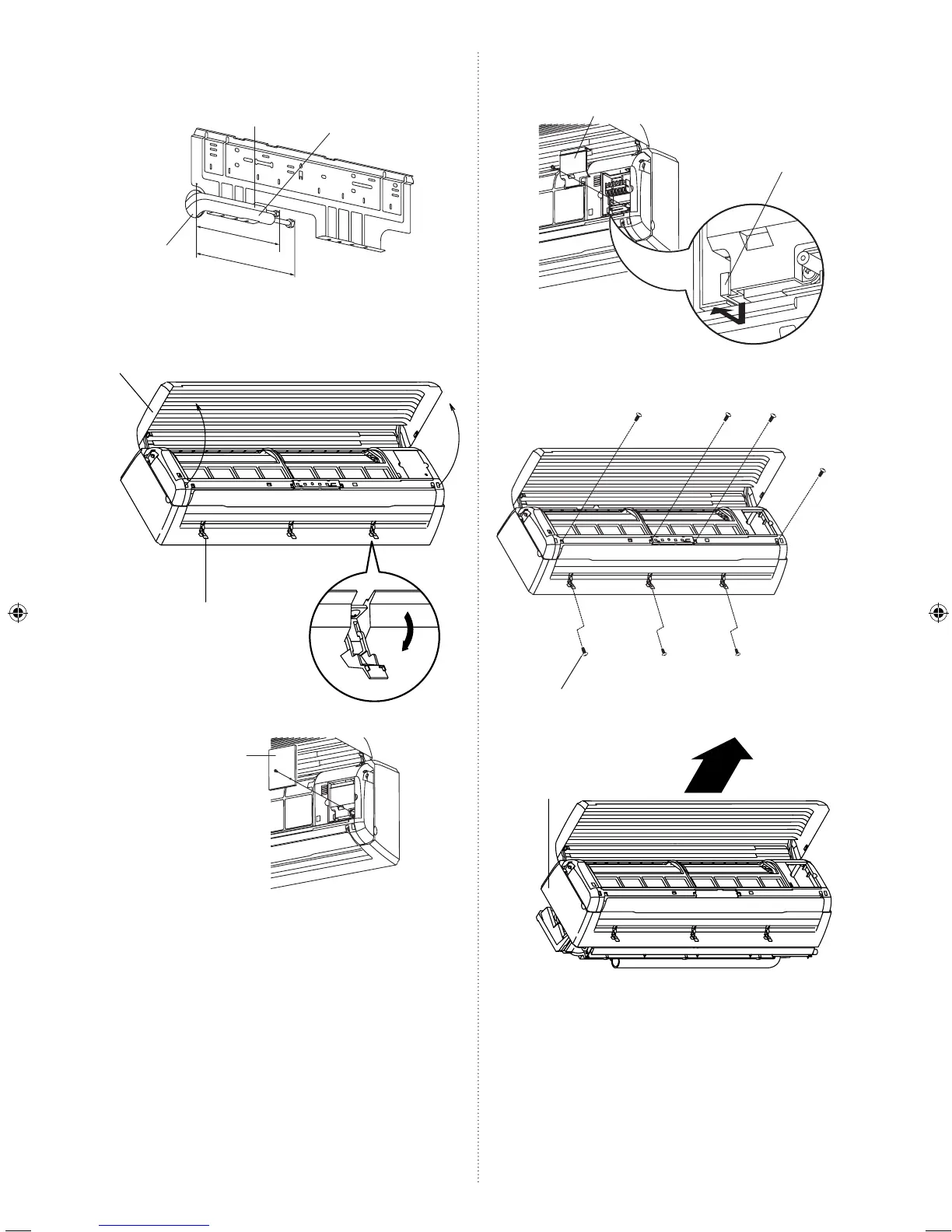

(1) Open the screw cover and intake grille.
Screw cover
Intake grille
(2) Removethecontrolboxcover.
Controlboxcover
(3) While minding the cable holder hook, remove the cable
holder.
Cable holder
Hook
(4) Remove the seven tapping screws.
Tapping screw
(5) Remove the panel.
Panel
(6) Mount the indoor unit to the wall hook bracket.
(7) Mount the drain hose and pipe to the indoor unit.
To Next Page
