System expansions

Removing the front panel

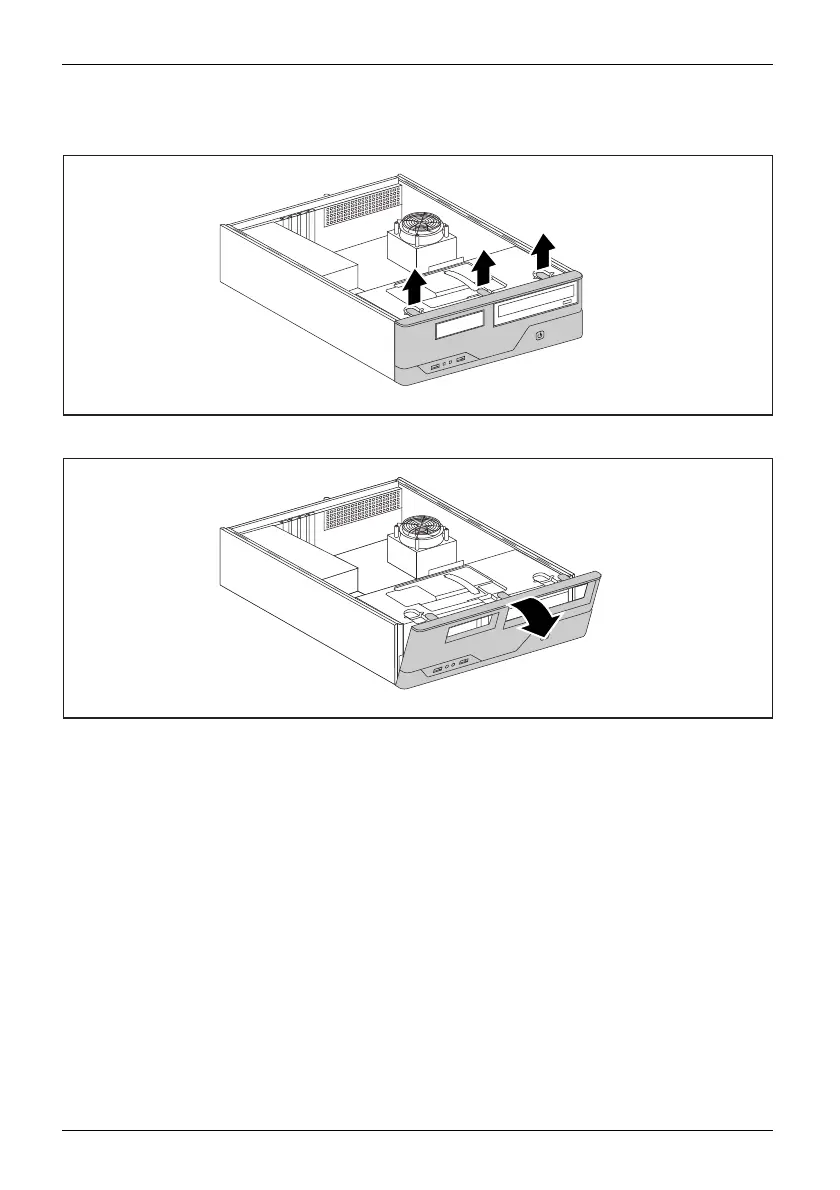

► Lift the l ocking lugs on the front panel (1).

► Fold the front pa nel in the direction of the a rrow (2) and remove it from the casing.

34 Fujitsu Technology Solutions
