Getting started

Connecting the device to the mains supply

Mainsadapter

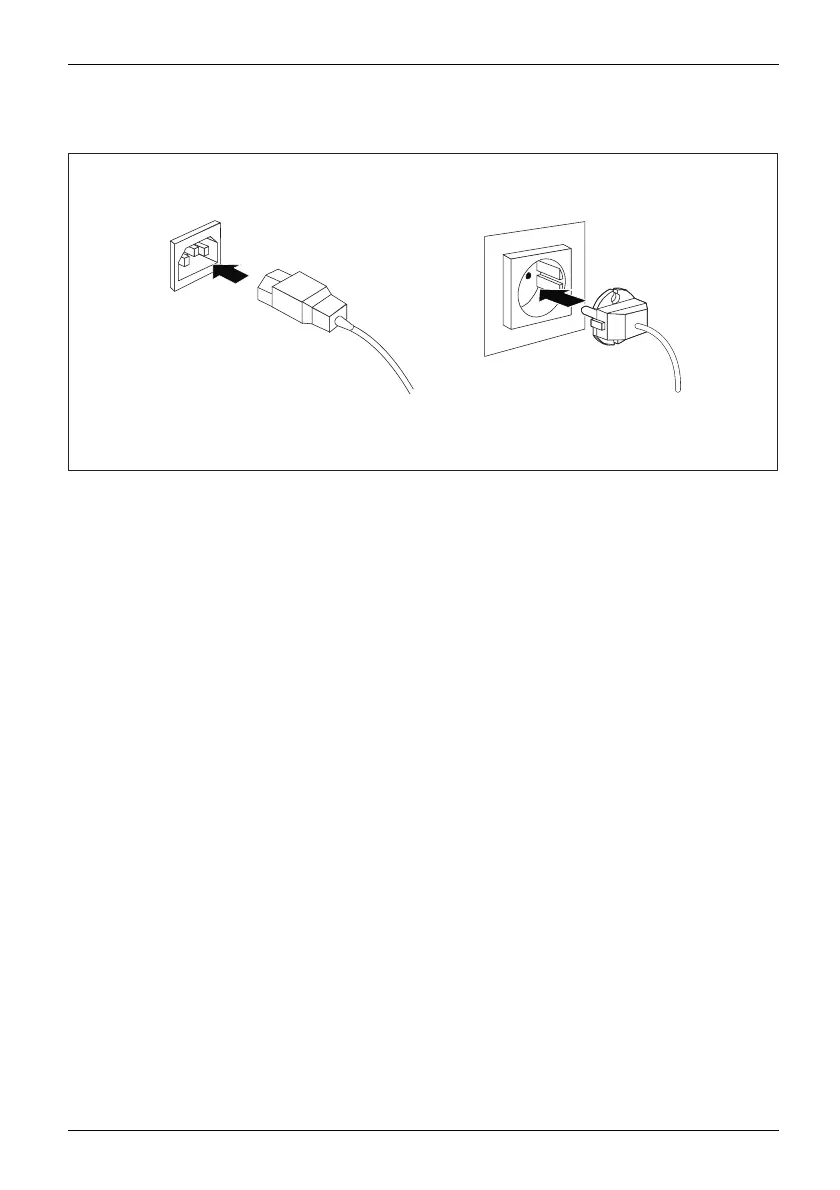

► Connect the power cable to the device (1).

► Plug the power plug into a grounded mains outlet (2).

Fujitsu Technology Solutions 15
