Working with the notebook
Connecting the notebook to the port replicator
► Disconnect the AC adapter cable from the DC jack (DC IN ) of the notebook.
1
2

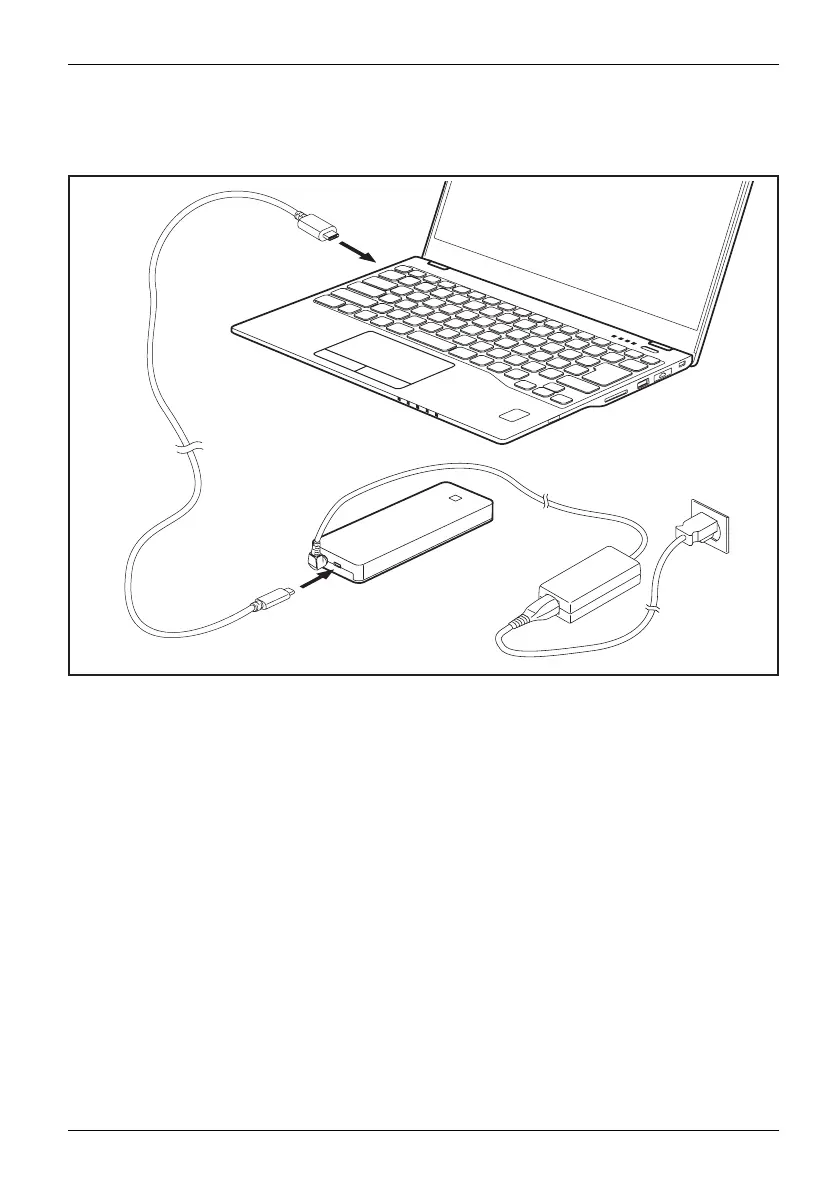

► Connect the end of the USB cable (USB Type C) to the USB Intel® Thunderbolt
TM
3port
with charging function and display port (USB Type C) on the notebook (1).
► Connect th
e other end of the USB cable (USB Type C) to the USB 3.1 Gen 1 port for
data conne
ction and power supply (USB Type C) on the p ort replicator (2).
Fujitsu 43
