CX400 M4 Disassembly and Recycling Instructions 29
Disassembly and recycling

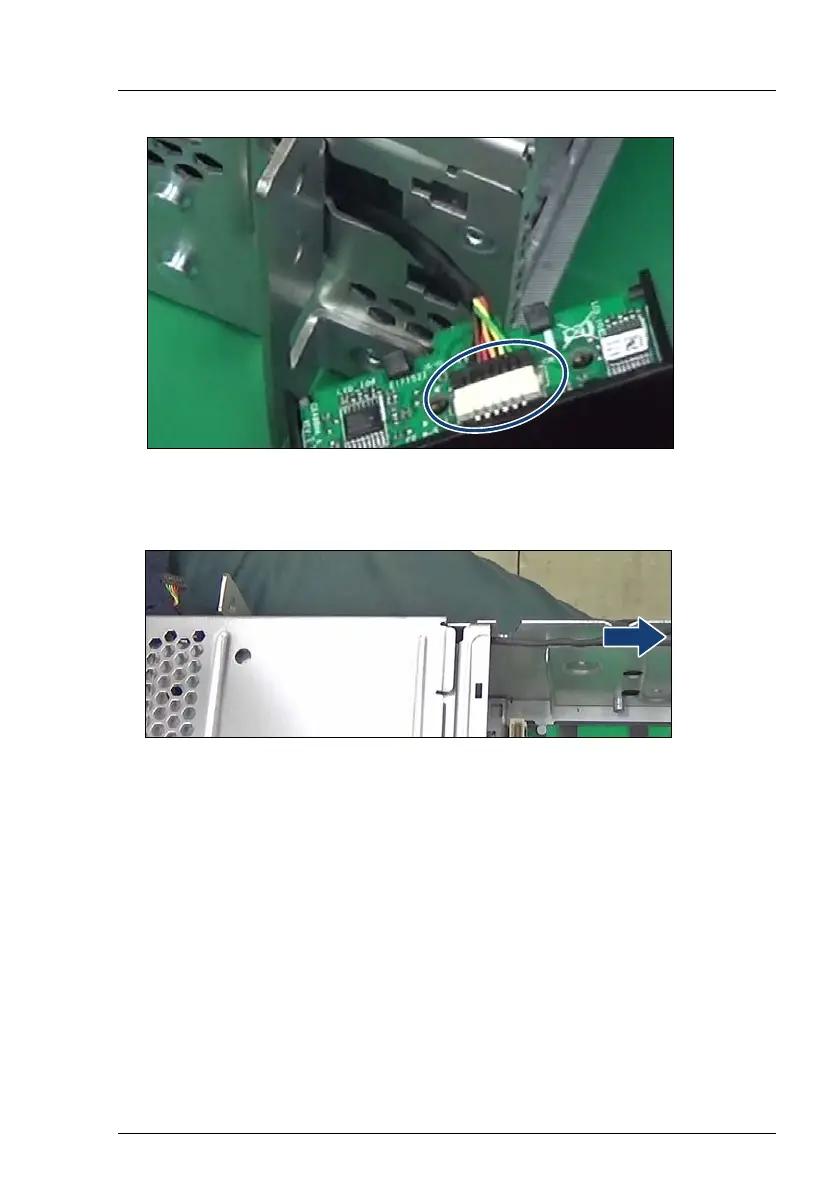

Figure 25: Disconnecting the front panel cable
Ê Disconnect the front panel cable from the front panel module (see oval).
Figure 26: Removing the front panel cable
Ê Pull the front panel cable out of the cable duct.
Ê Remove the front panel cable from the chassis.
