28 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling
1.2.11 Removing the front panel modules
Ê Remove the front panel modules on the right and left side of the server
enclosure:

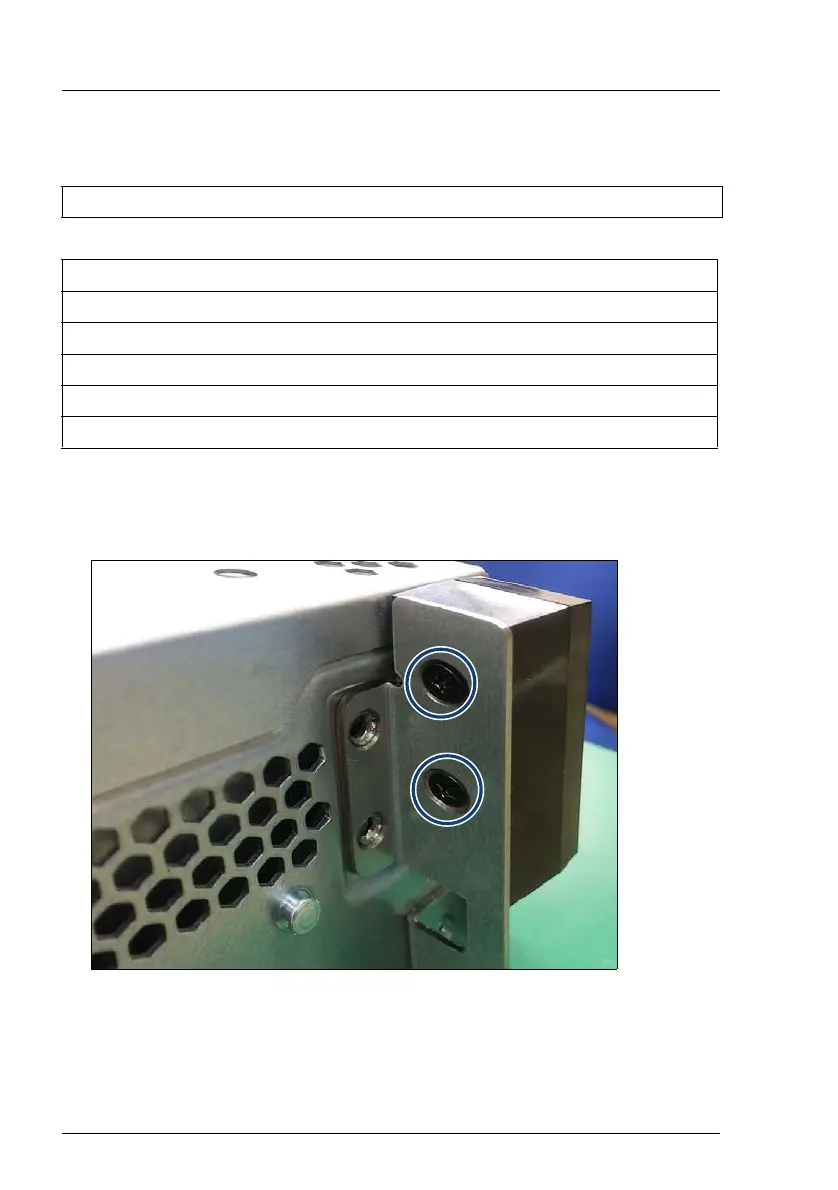

Figure 24: Removing the front panel module
Ê Remove two screws (see circles).
Tools: Phillips PH2 / (+) No. 2 screw driver
Recycling parts
2x front panel modules, 4x screws
Metal
Plastic
Printed circuit
Cables
