CX400 M4 Disassembly and Recycling Instructions 9
Disassembly and recycling
1.2 Disassembly of the server enclosure
I Not all components are installed in the server enclosure depending on
the configuration.
1.2.1 Removing server nodes from the server enclosure
I For recycling parts of the server nodes, see section "Disassembly of the
server nodes" on page 30.
Removing the CX2550 M4/M5 or CX2560 M4/M5 server node
Ê Remove all external cables from the server enclosure and server nodes.
Tools: tool-less
Recycling parts
1x - 4x server nodes
External cables
Ê Only necessary for CX2550 M4 and
CX2560 M4 server nodes: remove the
gasket of the lower server node.

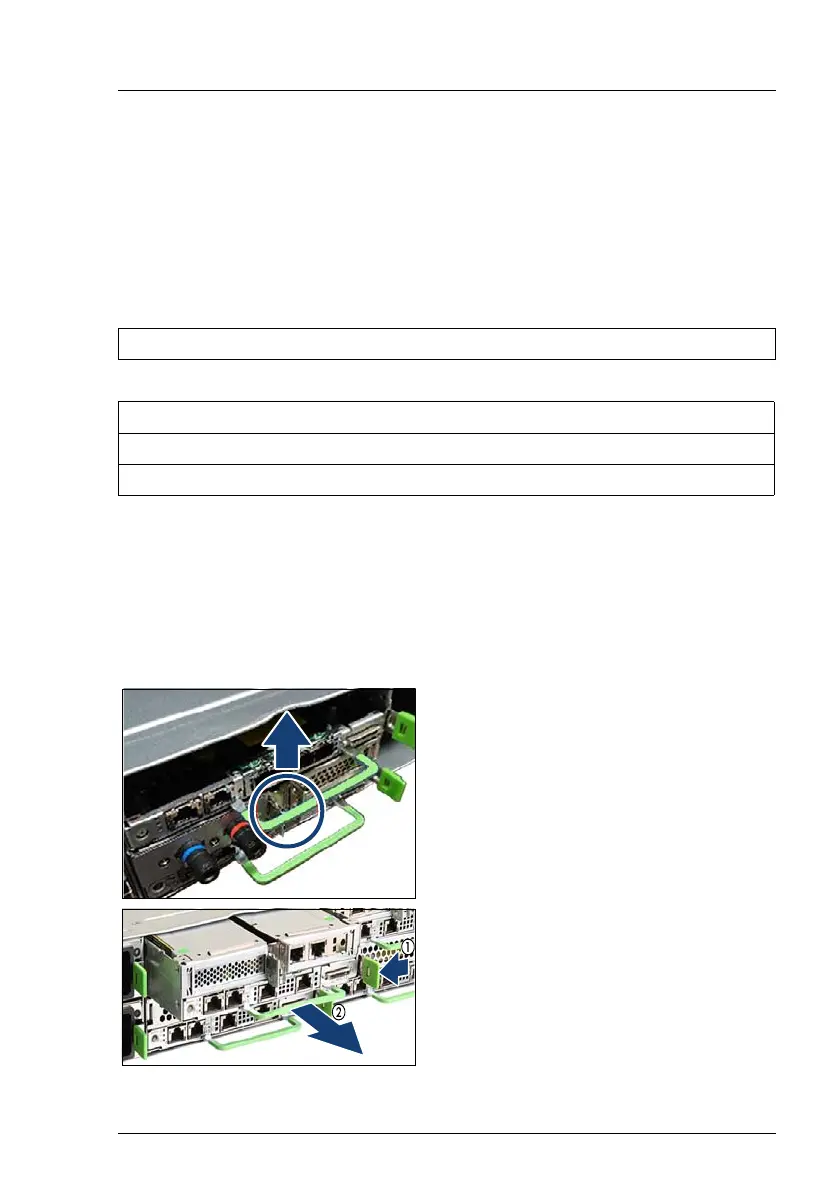

Ê Undo the locking mechanism (1) of
the release lever and pull the server
node out of the bay (2).
