CX400 M4 Disassembly and Recycling Instructions 61
Disassembly and recycling
1.3.8 Removing the heat sink and CPU (LC)
Removing the LC heat sinks

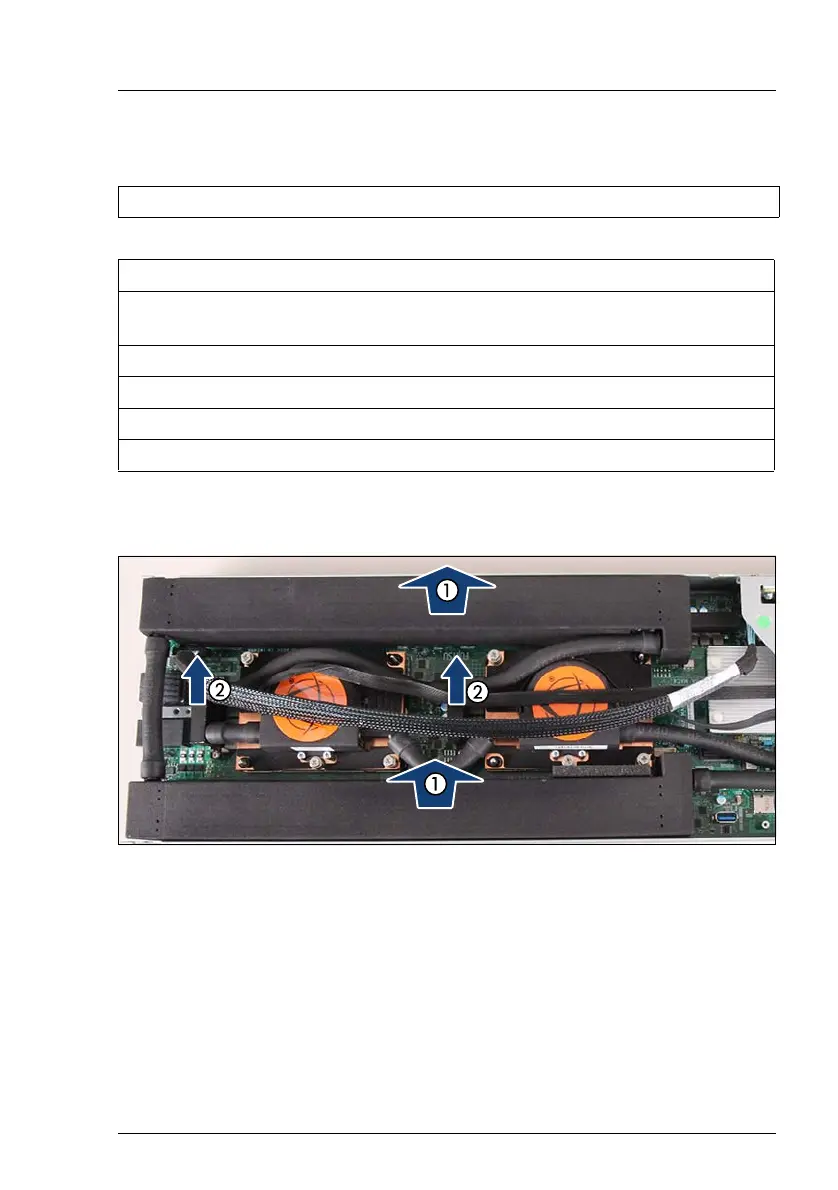

Figure 77: Removing the memory modules covers and VRM heat sink covers
Ê Remove the memory modules covers (1) and the VRM heat sink covers (2).
Tools: Phillips PH2 / (+) No. 2 screw driver
Recycling parts
2x CPUs, 2x CPU frames, 2x heat sinks, covers, 6x heat sink clamps, tubes,
several screws
Metal
Plastic
Printed circuit
Cables
