20 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling
1.2.6 Removing the midplane kit

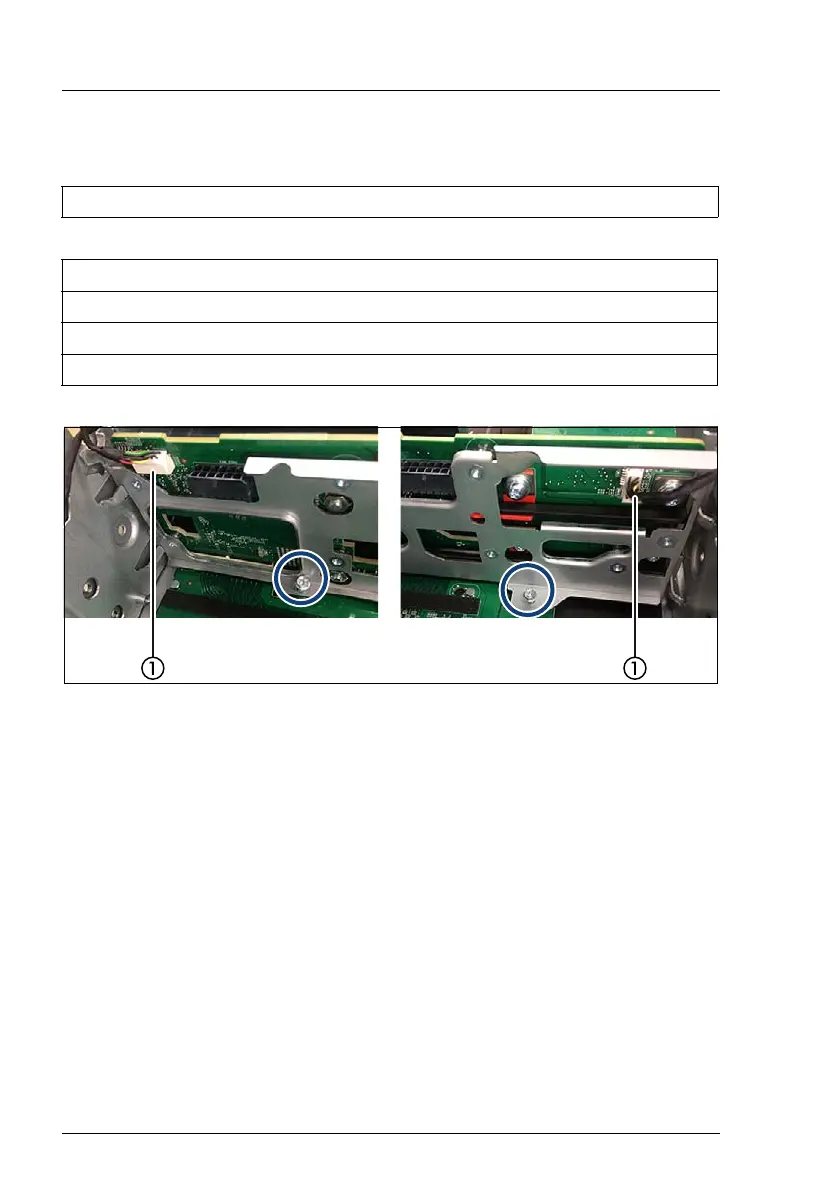

Figure 14: Removing the midplane kit (A)
Ê Disconnect the front panel cables from the midplane (1).
Ê Hang the cable ends on the housing edge to the outside.
Ê Remove two screws (see circles).
Tools: Phillips PH2 / (+) No. 2 hexagonal cross SW5 / PZ2
Recycling parts
1x PSU interposer, 1x chassis interface board, midplane, several screws
Metal
Plastic
