CX400 M4 Disassembly and Recycling Instructions 21
Disassembly and recycling

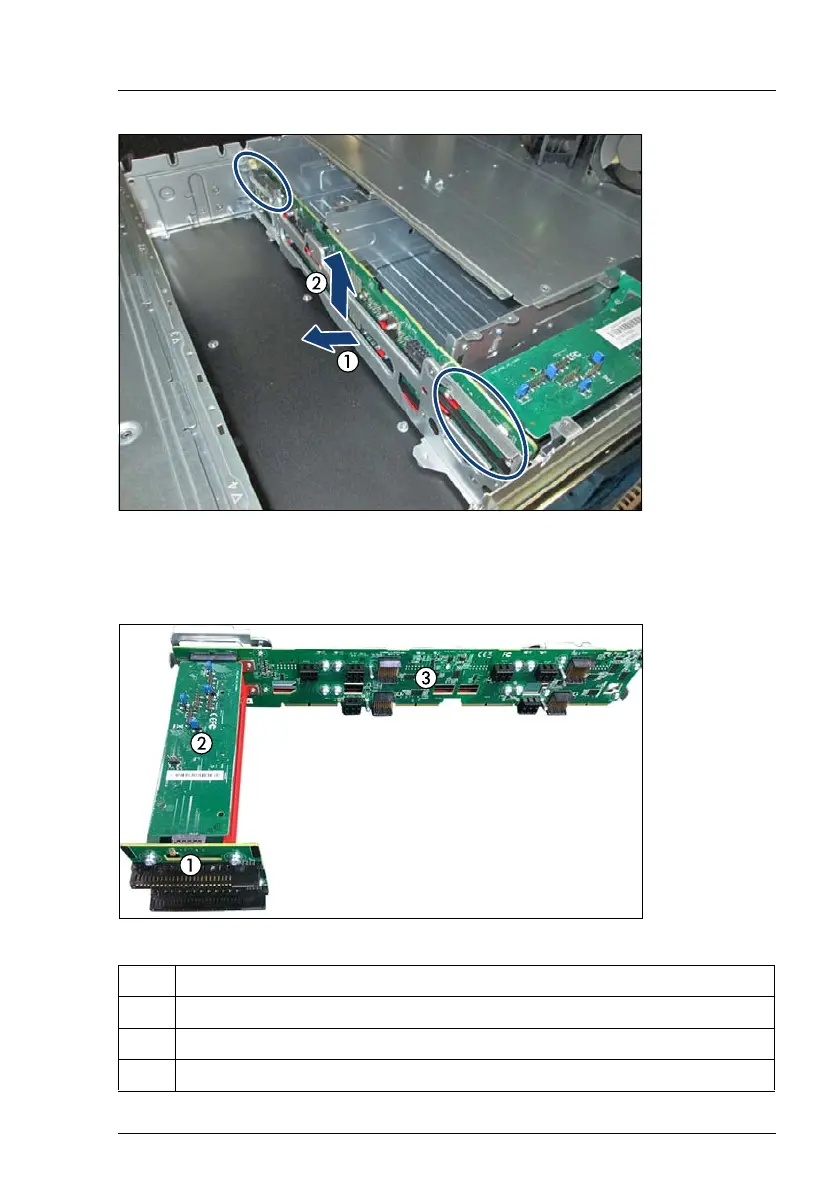

Figure 15: Removing the midplane kit (B)
Ê Grip the midplane kit with the metal bars (see circles), pull it to the front (1)
and remove it out of the chassis (2).
Figure 16: Midplane kit components
Pos. Component
1 PSU interposer
2 Chassis interface board
3 Midplane
