42 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling

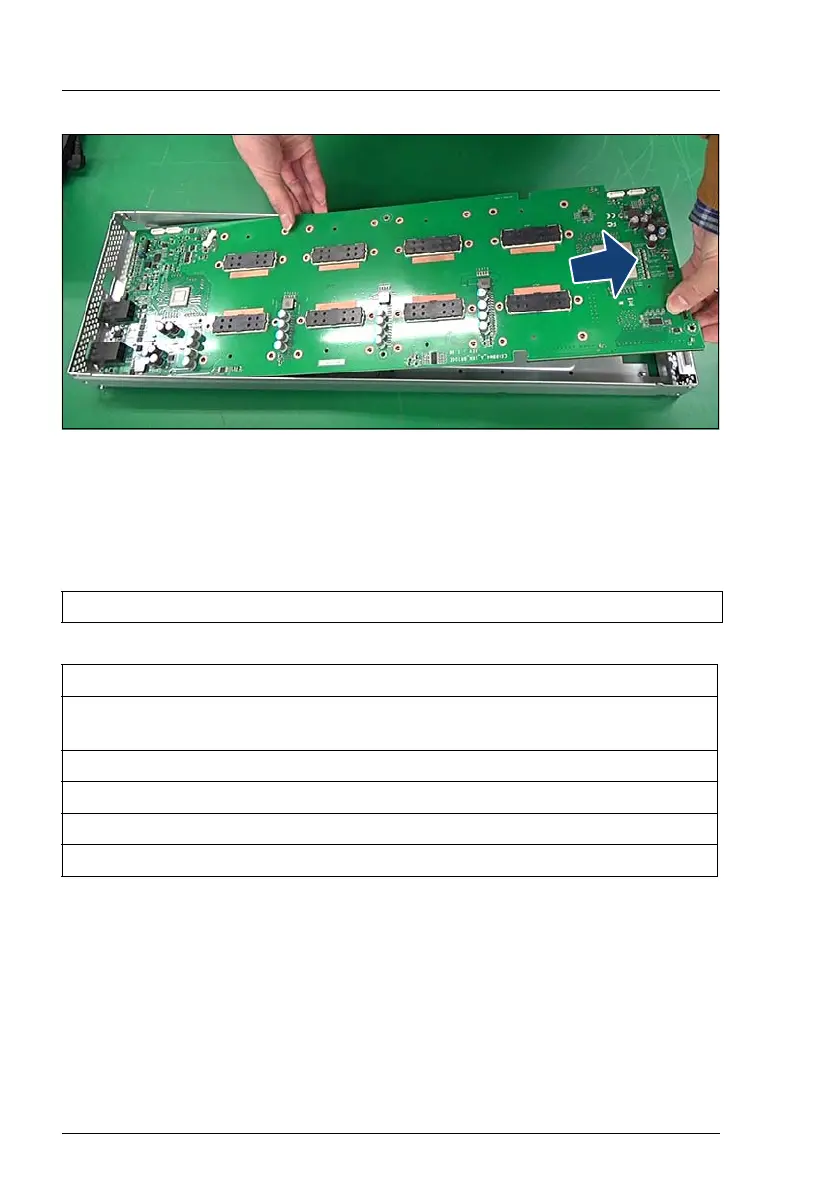

Figure 45: Removing the SXM2 base board (B)
Ê Lift the SXM2 base board at a slight angle out of the chassis.
1.3.2 Removing the GPGPU extension tray and GPGPUs
Tools: Phillips PH2 / (+) No. 2 screw driver
Recycling parts
CPGPU extension tray, 3x GPGPU riser, 1x Power Interface Board (PIB), 1x
or 2x GPGPUs, 2x spacer, several screws
Plastic
Metal
Printed circuit
Cables
