CX400 M4 Disassembly and Recycling Instructions 43
Disassembly and recycling
Removing the GPGPU extension tray

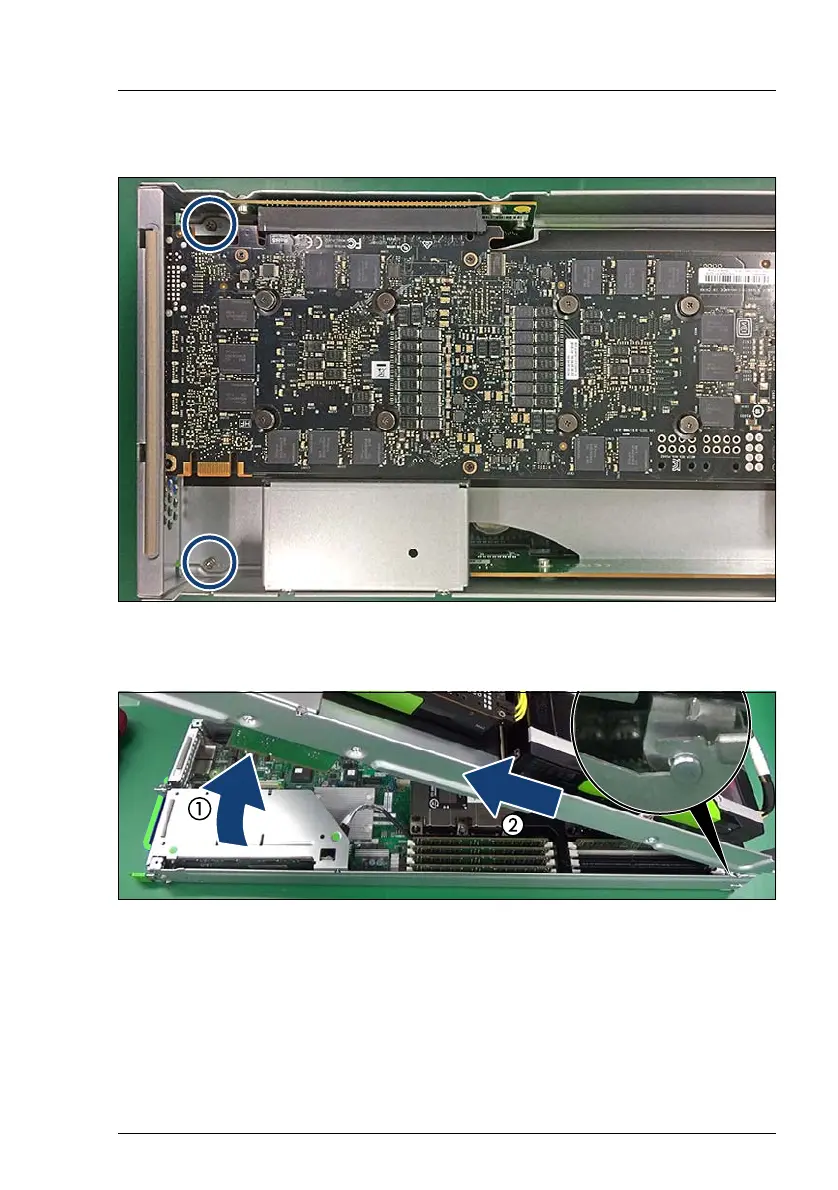

Figure 46: Removing the GPGPU extension tray (A)
Ê Remove the two screws (see circles).
Figure 47: Removing the GPGPU extension tray (B)
Ê Swivel the GPGPU extension tray up (1) and remove it from the system
tray (2).
