44
Disassembly
and
Recycling
Instructions
CX400
M4
Disassembly and recycling
Removing GPGPUs, the PIB and brackets

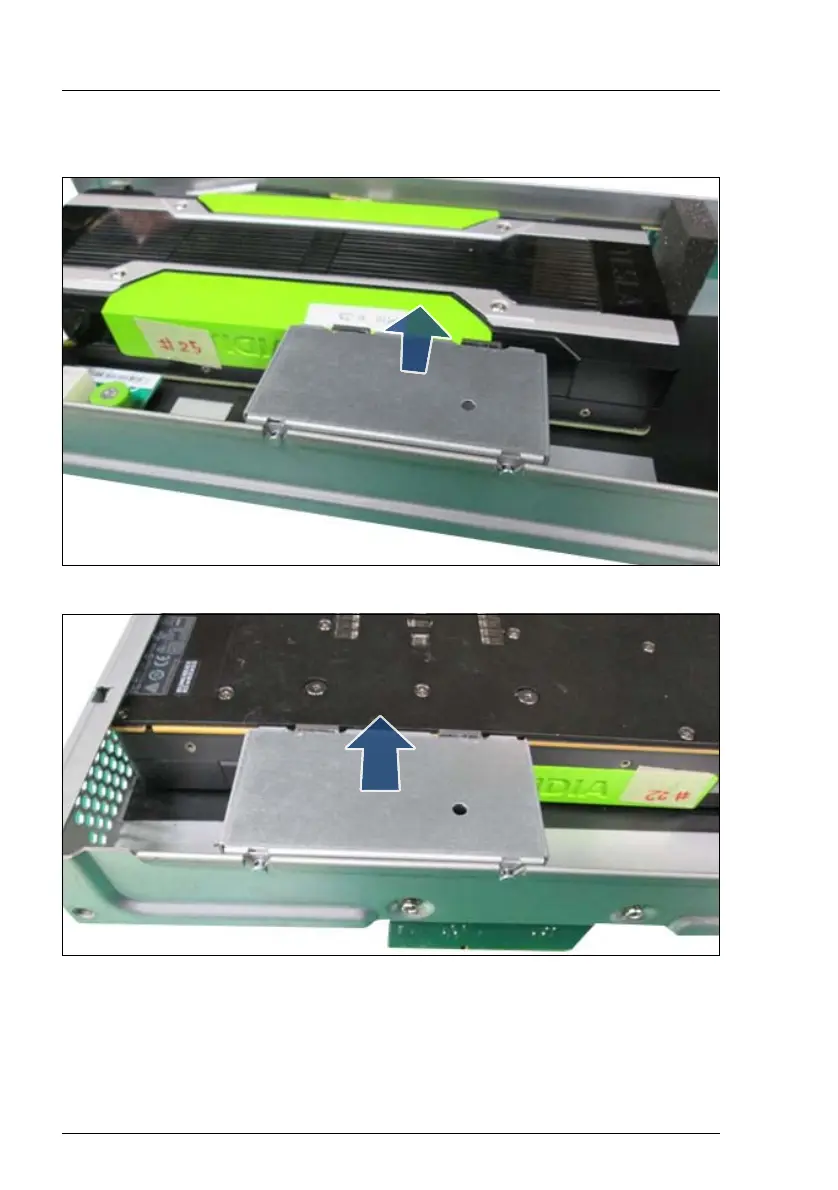

Figure 48: Removing the spacer (A)
Figure 49: Removing the spacer (B)
Ê
Remove the two spac
ers from the tray
.
43
45
