CX400 M4 Disassembly and Recycling Instructions 45
Disassembly and recycling

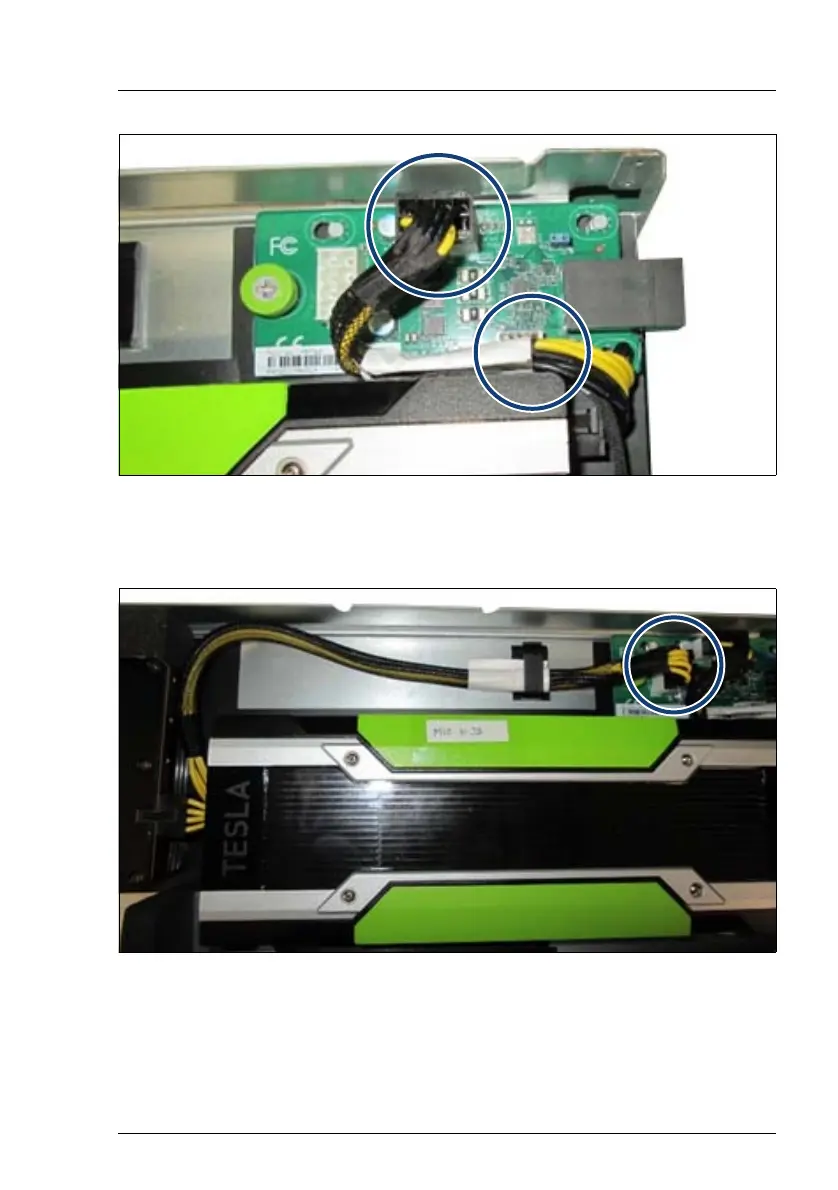

Figure 50: Disconnecting the GPGPU power cable and the I2C cable from the PIB
Ê Disconnect the GPGPU power cable and the I2C cable from the PIB, see
circles.
Figure 51: Disconnecting the second GPGPU power cable
Ê If applicable, disconnect the second GPGPU power cable from the PIB, see
circle.
