46 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling

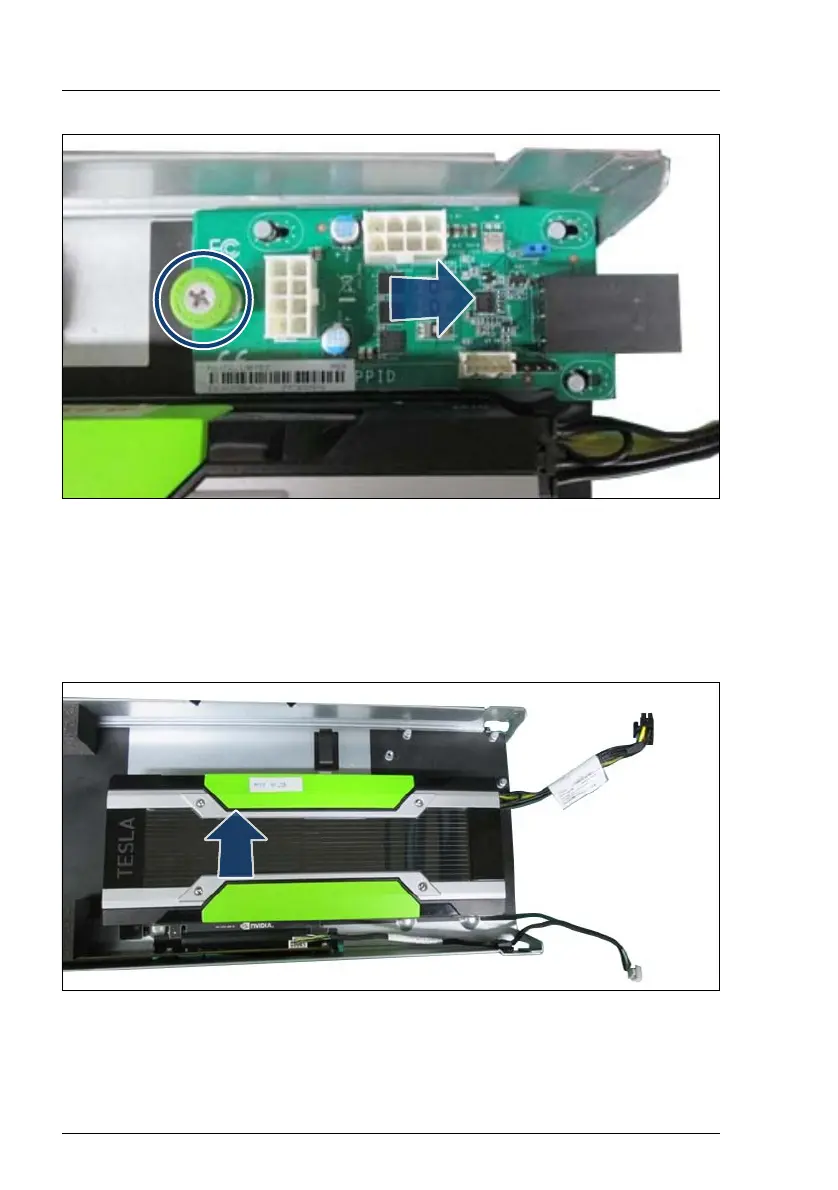

Figure 52: Removing the PIB
Ê Loosen the captive screw (see circle).
Ê Carefully shift the PIB in the direction of the arrow until the plug shell
disengage from the cut-out in the chassis.
Ê Lift the PIB out of the chassis.
Figure 53: Removing the GPGPU from the chassis
Ê Disconnect the GPGPU from the riser (see arrow).
Ê Lift the GPGPU in a vertical motion out of the chassis.
