CX400 M4 Disassembly and Recycling Instructions 59
Disassembly and recycling
1.3.7 Removing the heat sink and CPU (Air cooling)
Removing the CPU heat sink

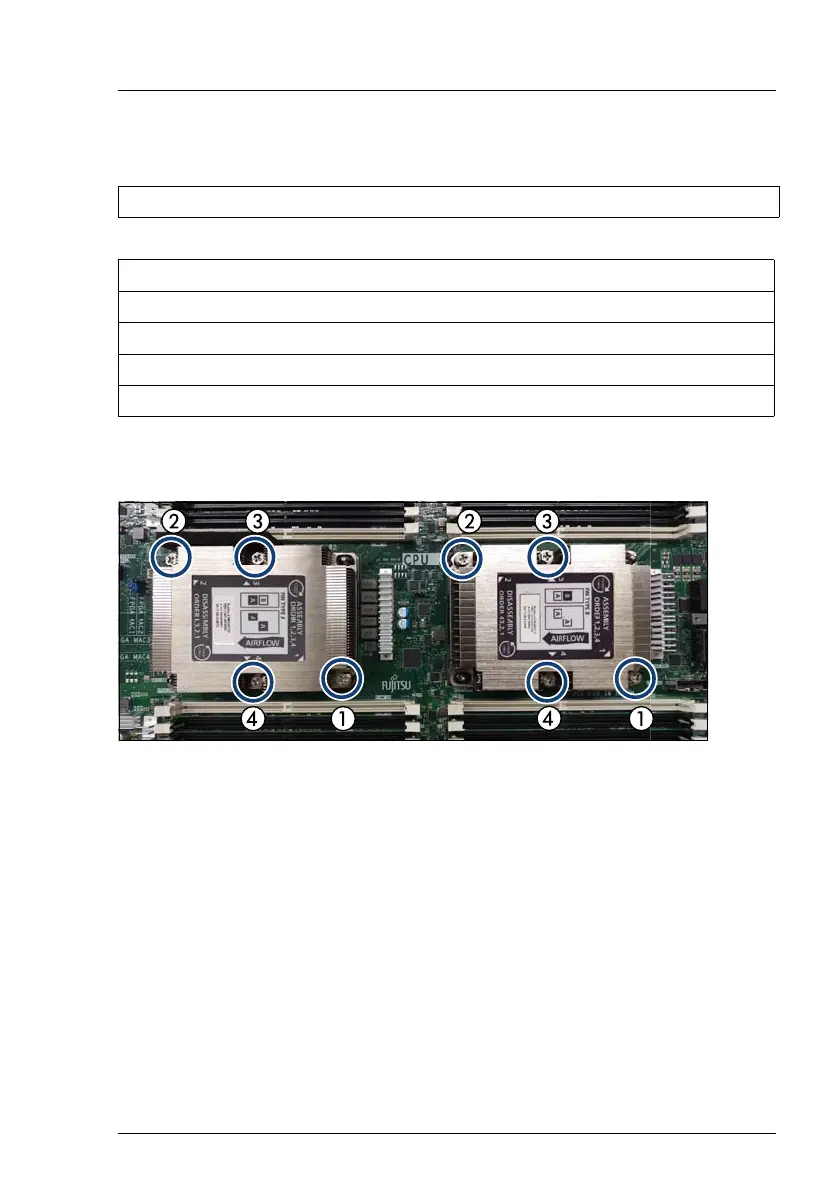

Figure 74: Removing the CPU heat sink
Ê Loosen the four captive screws on the CPU heat sink in a crossover pattern
(1-4).
Ê Lift the heat sink out of the chassis.
Tools: Phillips PH2 / (+) No. 2 screw driver
Recycling parts
2x CPUs, 2x CPU heat sinks, 2x CPU frames, several screws
Metal
Plastic
Printed circuit
