22 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling
1.2.7 Removing 2.5-inch HDD/SSD modules
Removing 2.5-inch dummy modules

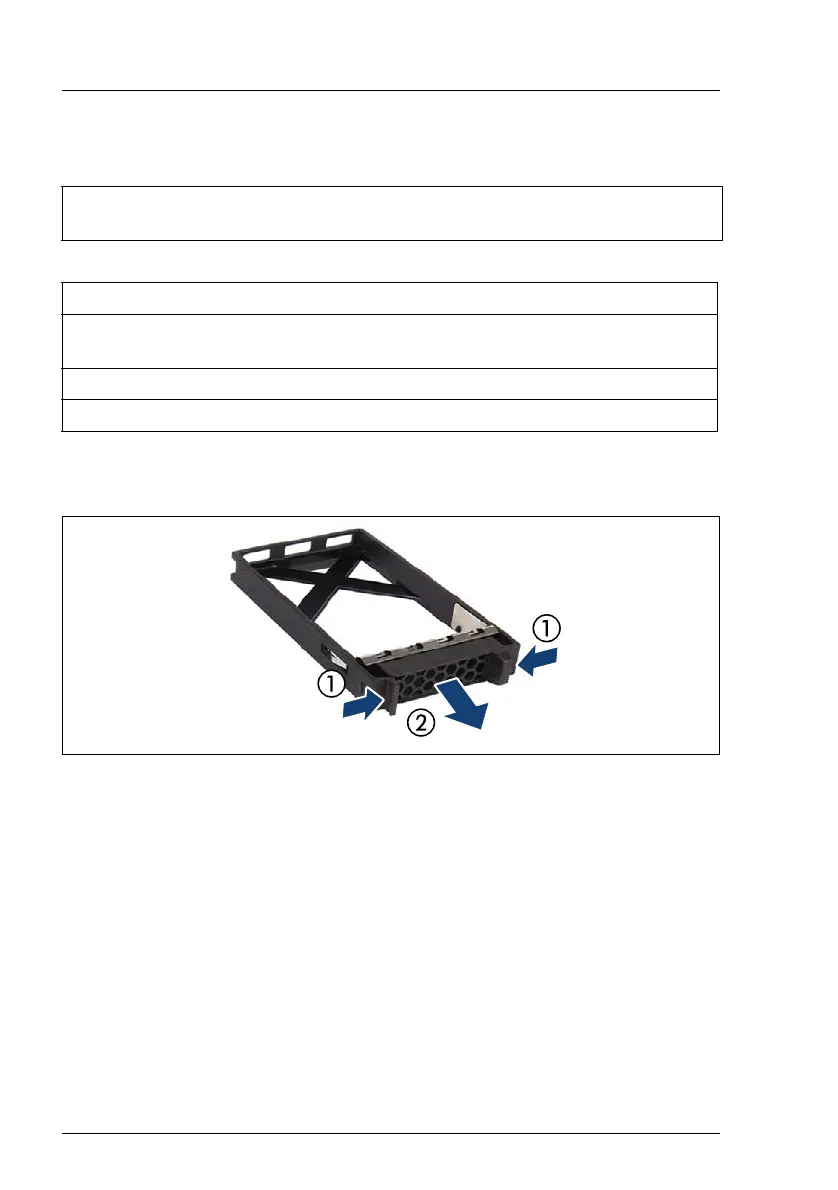

Figure 17: Removing the dummy module
Ê Remove all dummy modules:
Ê Press both tabs together (1) and pull the dummy module out of its bay
(2).
Tools: Phillips PH1 / (+) No. 1 screw driver (only for removing installation
frame)
Recycling parts
HDDs/SSDs, dummy modules, installation frames, 4x screws per installation
frame
Metal
Plastic
