CX400 M4 Disassembly and Recycling Instructions 23
Disassembly and recycling
Removing 2.5-inch HDD/SSD modules

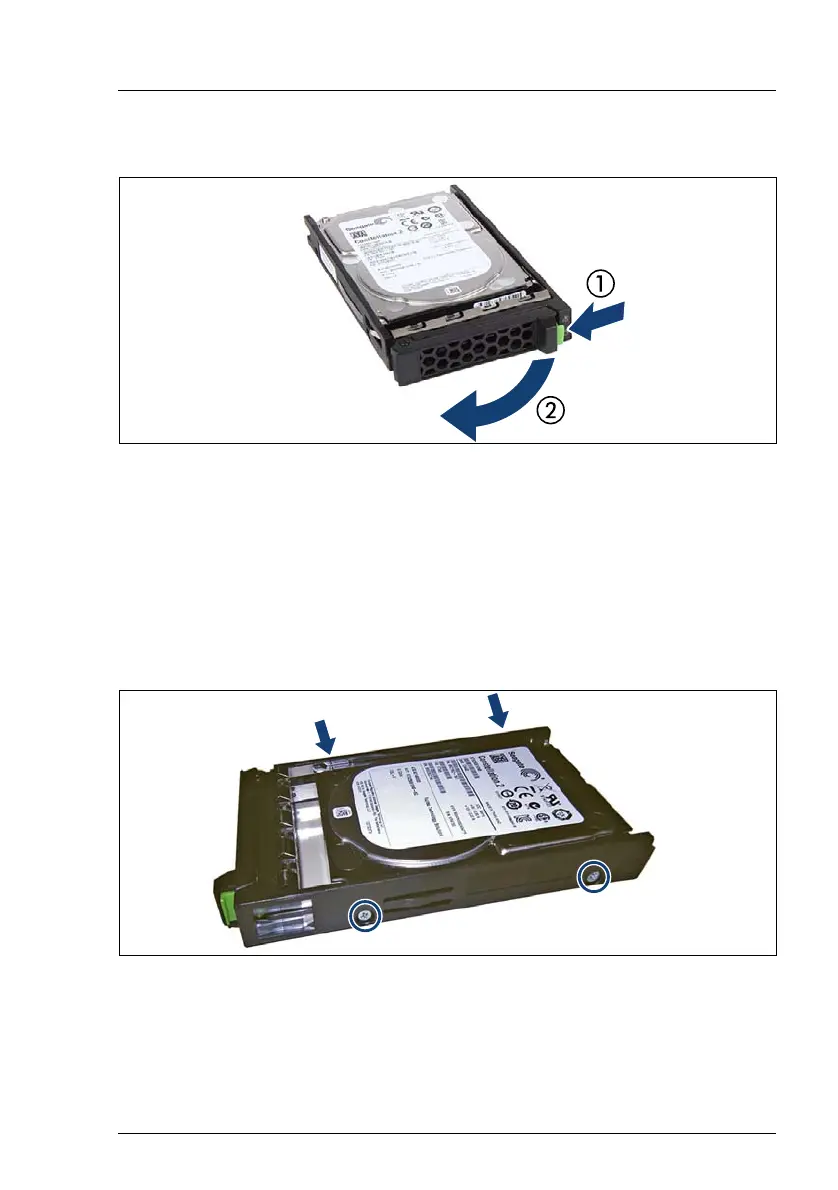

Figure 18: Opening the locking lever
Ê Remove all HDD/SSD modules:
Ê Pinch the green locking clip (1) and open the locking lever (2).
Ê Pull the HDD/SSD module out a few centimeters.
Ê Pull the HDD/SSD module completely out of its bay.
Removing 2.5-inch HDDs/SSDs from 2.5-inch installation frames
Figure 19: Removing the 2.5-inch HDD/SSD from the 2.5-inch installation frame
Ê Remove all HDDs/SSDs from their frames:
Ê Remove the four screws (see circles).
Ê Remove the frame.
