CX400 M4 Disassembly and Recycling Instructions 41
Disassembly and recycling

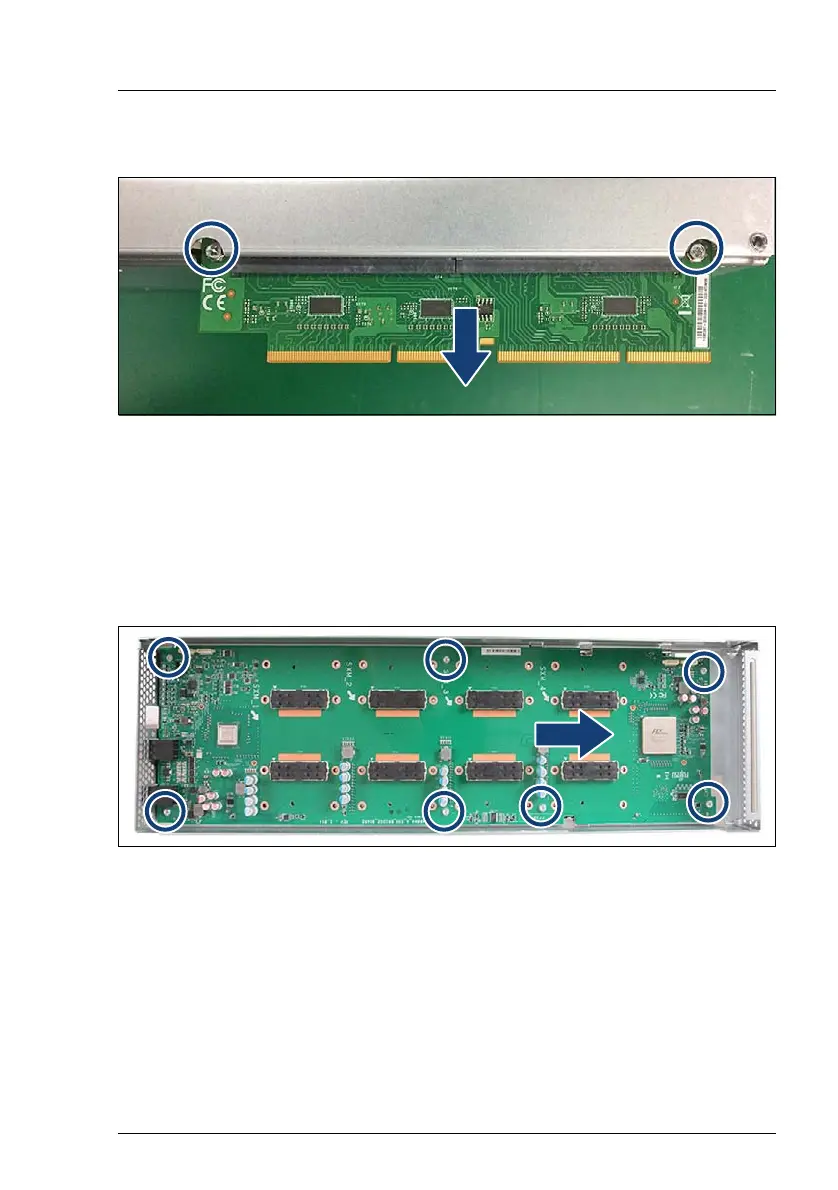

Removing the SXM2 riser (L)
Figure 43: Removing the riser (L)
Ê Place the SXM2 tray on the right side.
Ê Remove two screws (see circles).
Ê Unplug the riser from the SXM2 base board.
Removing the SXM2 base board
Figure 44: Removing the SXM2 base board (A)
Ê Remove 7 screws from the SXM2 base board (see circles).
Ê Carefully shift the SXM2 base board in the direction of the arrow until the
plug shells disengage from the cut-outs in the I/O panel.
