40 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling

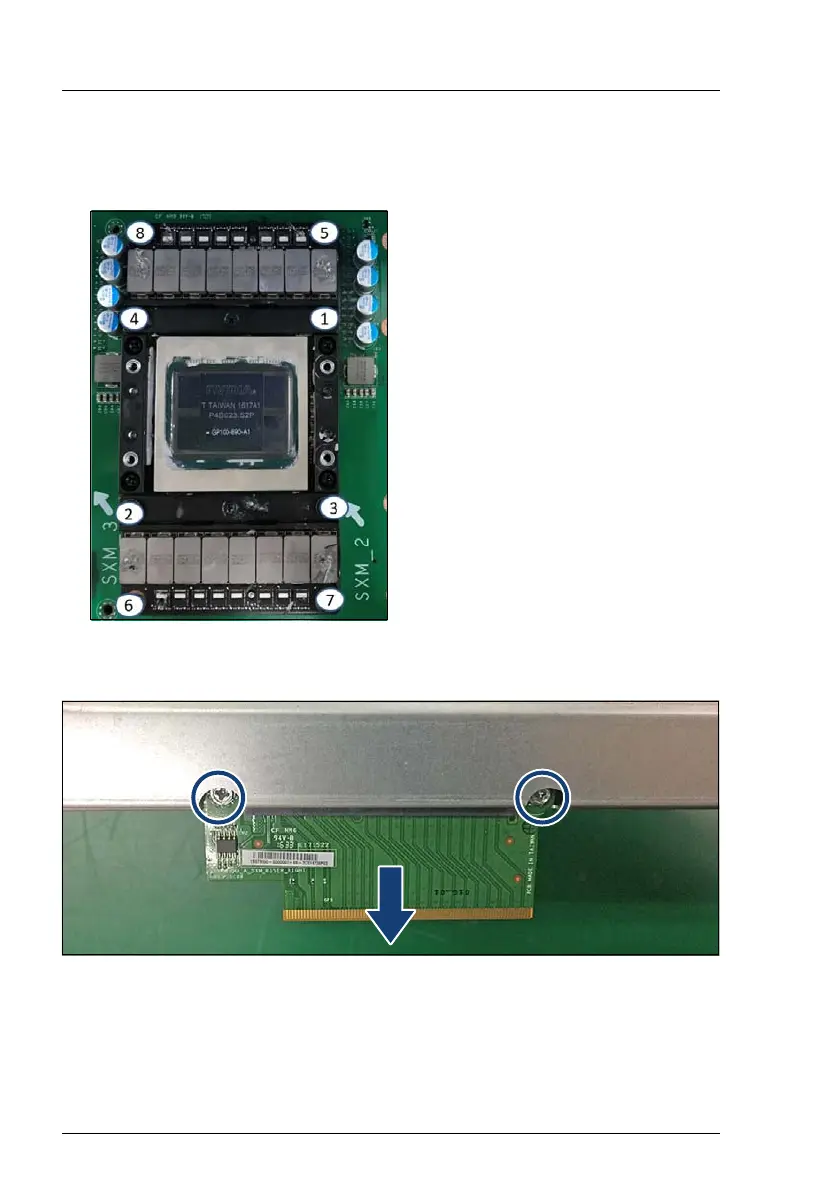

Removing SXM2 modules
Ê Remove all SXM2 modules:
Removing the SXM2 riser (R)
Figure 42: Removing the riser (R)
Ê Place the SXM2 tray on the left side.
Ê Remove two screws (see circles).
Ê Unplug the riser from the SXM2 base board.
Ê Loosen the eight captive
screws on the SXM2 module
by the sequence from 8 to 1.
Ê Carefully remove the SXM2
module from its sockets in a
vertical motion.
To Next Page
