CX400 M4 Disassembly and Recycling Instructions 39
Disassembly and recycling

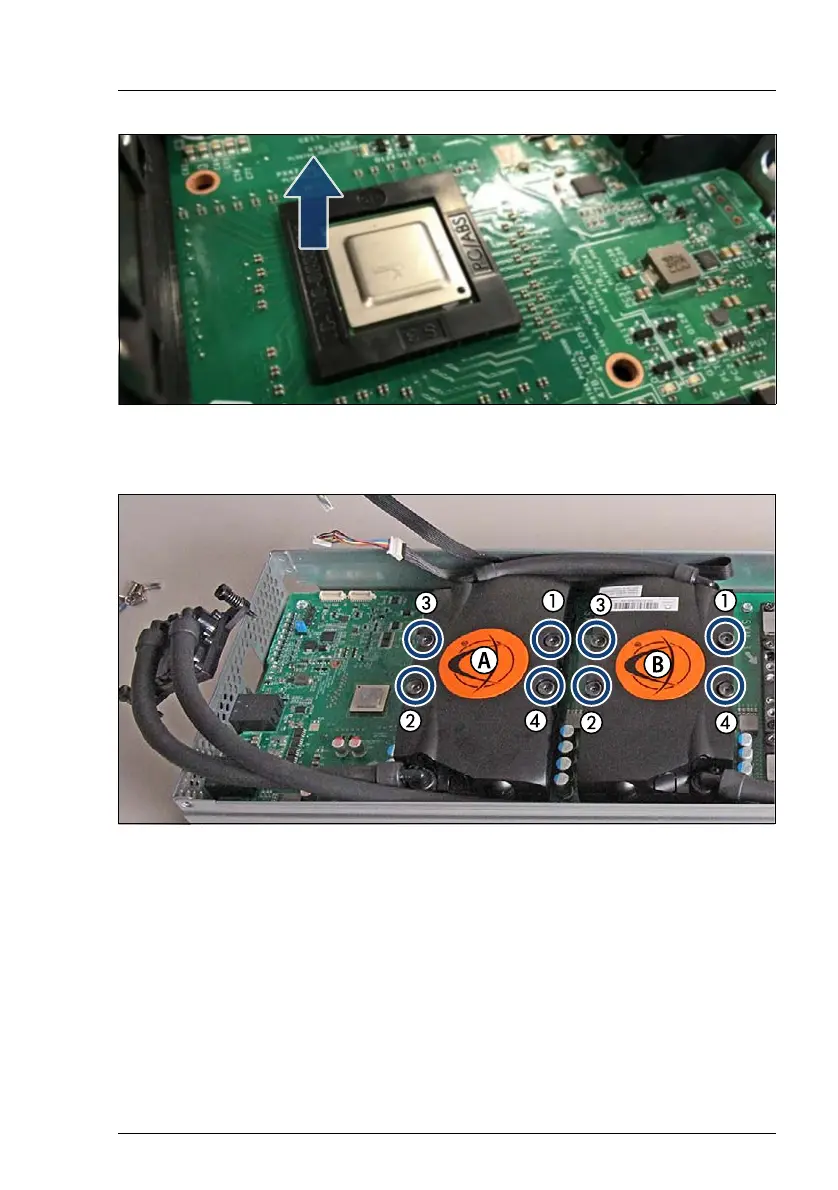

Figure 40: Removing the PLX bracket
Ê Remove the PLX bracket (see arrow), if it is present.
Figure 41: Removing LC heat sinks from SXM2 modules 1 (A) and 2 (B)
Ê Loosen the captive screws of SXM2 module 1 and SXM2 module 2(see
circles).
Ê Remove the LC heat sinks.
