38 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling

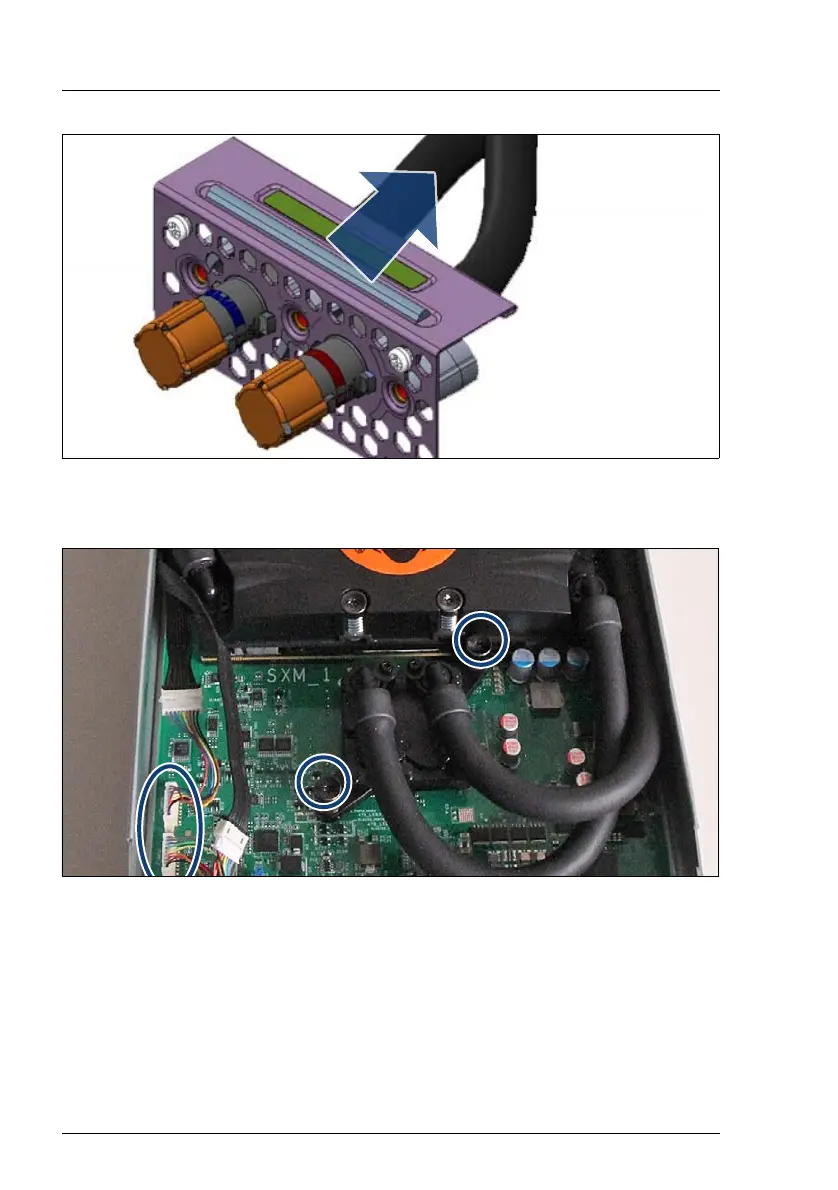

Figure 38: Removing the flexible tubes
Ê Pull both flexible tubes through the holes of the LC bracket (see arrow).
Figure 39: Removing the LC heat sink from the PCIe switch 1
Ê Disconnect the LC power cables form the base board (see oval).
Ê Loosen the captive screws (see circles).
