Disassembly and recycling
Removing LC from SXM2 modules 1 and 2:

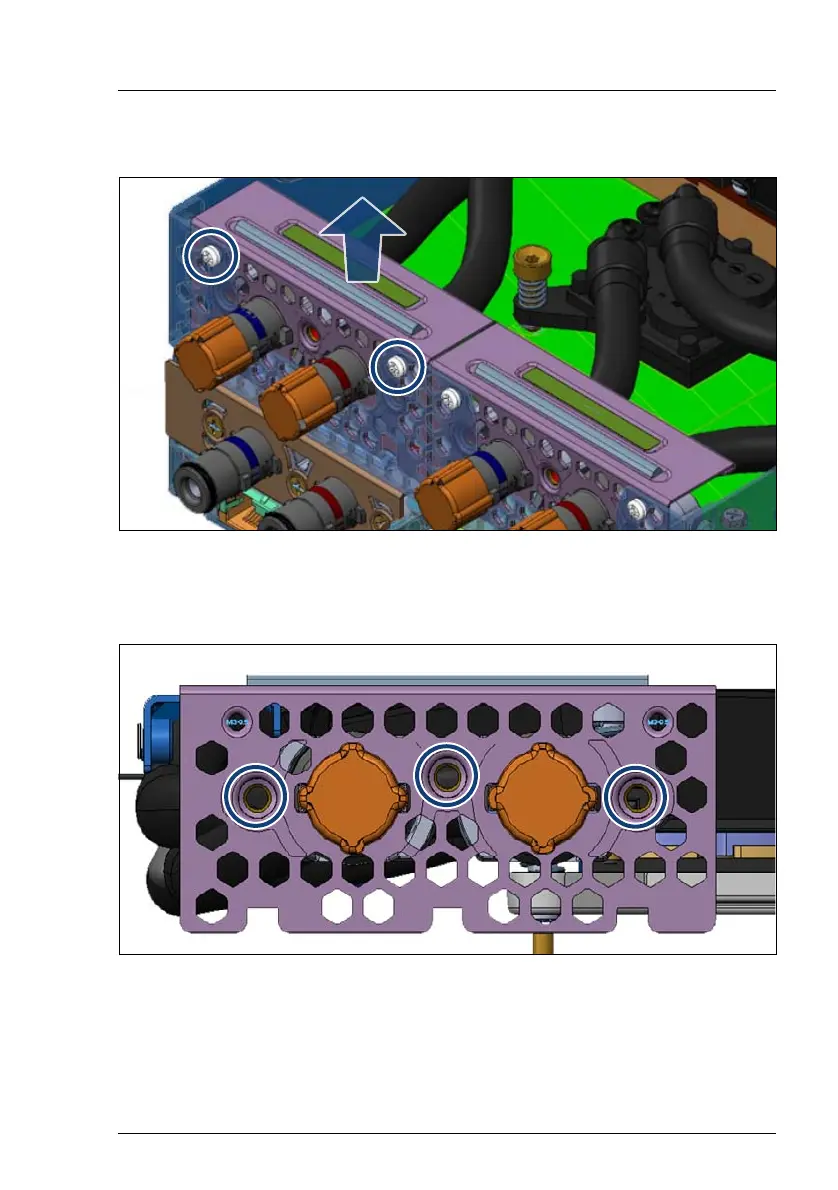

Figure 36: Loosening and lifting up the LC bracket
Ê Loosen the two screws (see circles) of the LC bracket and lift up the LC
bracket with tubes (see arrow).
Figure 37: Loosening the LC bracket
Ê Loosen the three screws (see circles) of the LC bracket.
