CX400 M4 Disassembly and Recycling Instructions 71
Disassembly and recycling

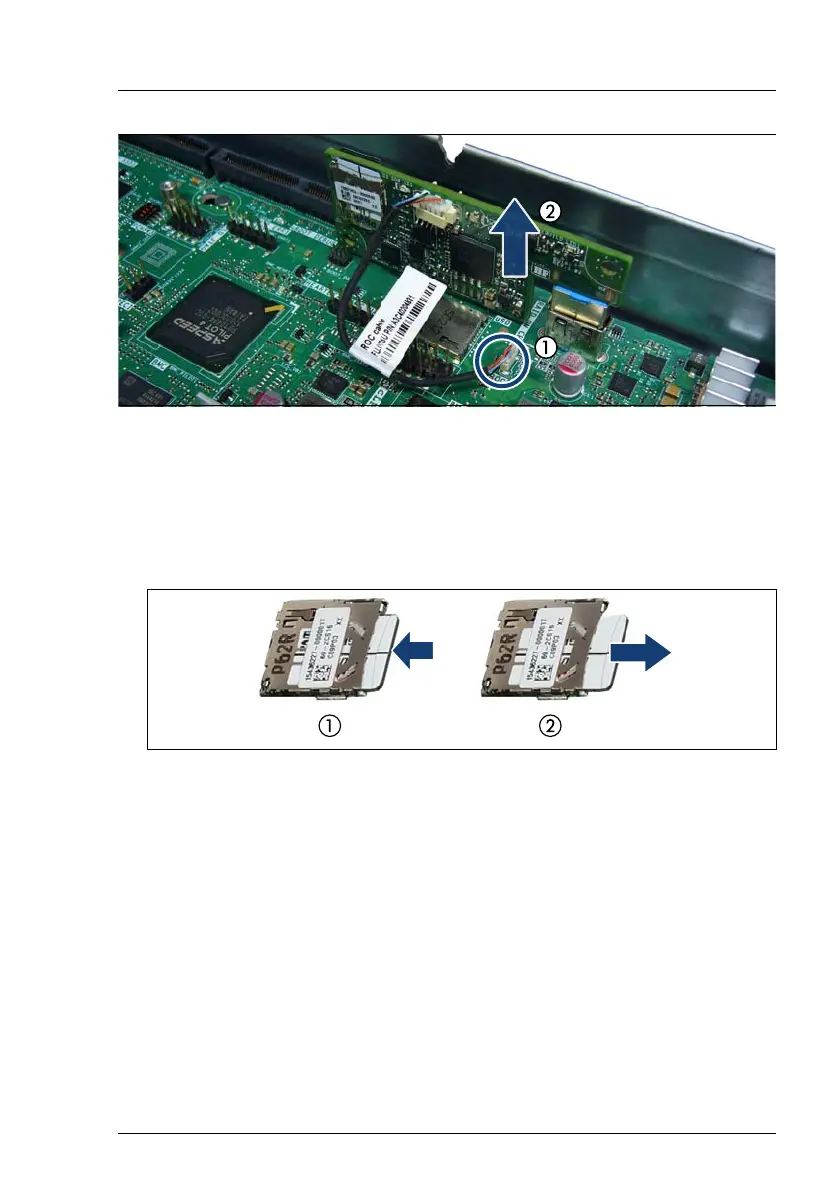

Figure 94: Removing the Dual microSD 64GB Enterprise
Ê Disconnect the cable from the connector "ROC" on the system board (1).
Ê Pull the Dual microSD 64GB Enterprise out of its connector (2).
Ê Remove both microSD cards from the microSD 64GB Enterprise. Proceed
as described in the following:
Figure 95: Removing the microSD card
Ê To eject the microSD card, gently push it in and then let go (1).
Ê Pull the microSD card straight out of its slot (2).
