40 Options Guide RX200 S3
Installing controllers Controllers in Non-Hot-Plug PCI Slots

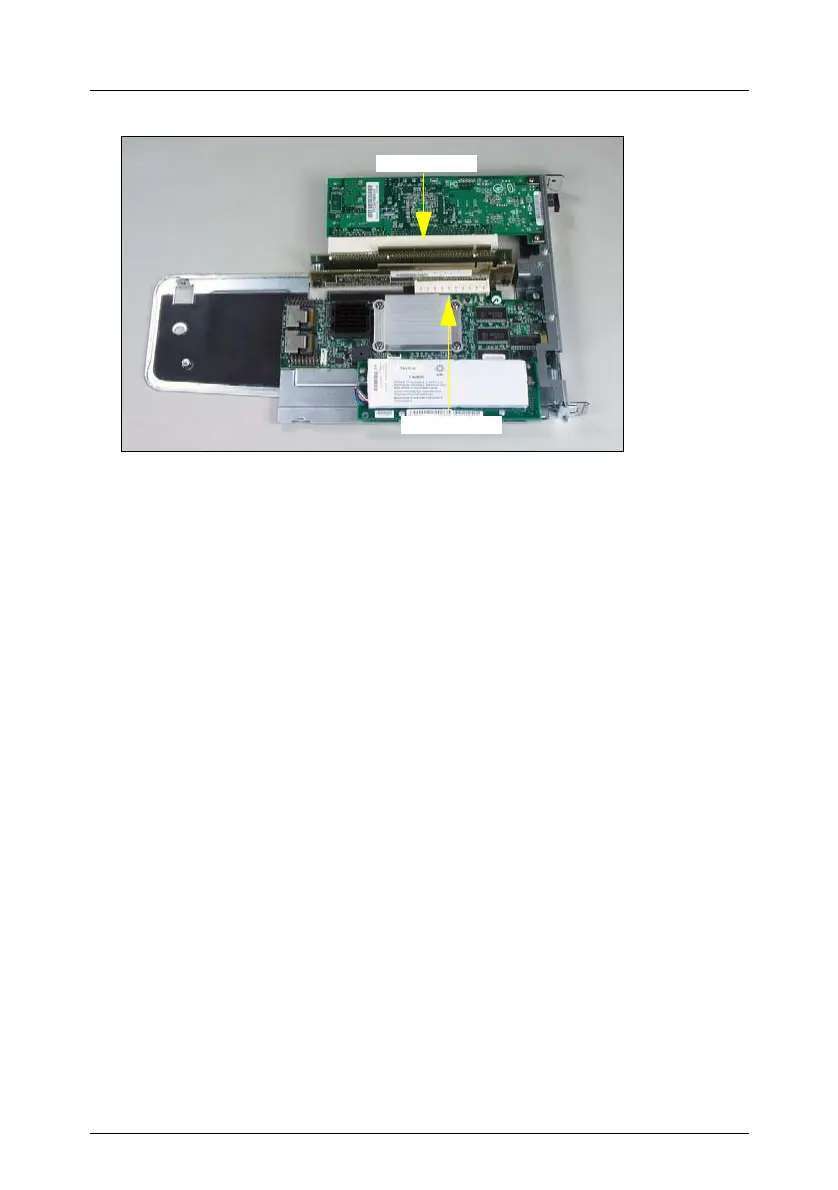

Figure 23: low profile: Slot #1; standard height or low profile: Slot #2
Ê Plug the board into the PCI slot on the riser card that is suitable for the height
of the board.
I Make sure that the slot cover fits into the appropriate recess.
Ê If necessary, plug in the cables on the board and other components.
Reinstalling the riser card holder
Ê Position the riser card holder on the system board’s PCI slots.
Ê Using the green points labeled with “PUSH”, push the riser card carefully
into the PCI slots.
Ê Close the server, plug in the power plugs, and switch on the server as
described in the chapter “Completion” on page 41f.
Slot #1
Slot #2
