42 Options Guide RX200 S3
Installing the server in the rack Completion
9.2 Installing the server in the rack

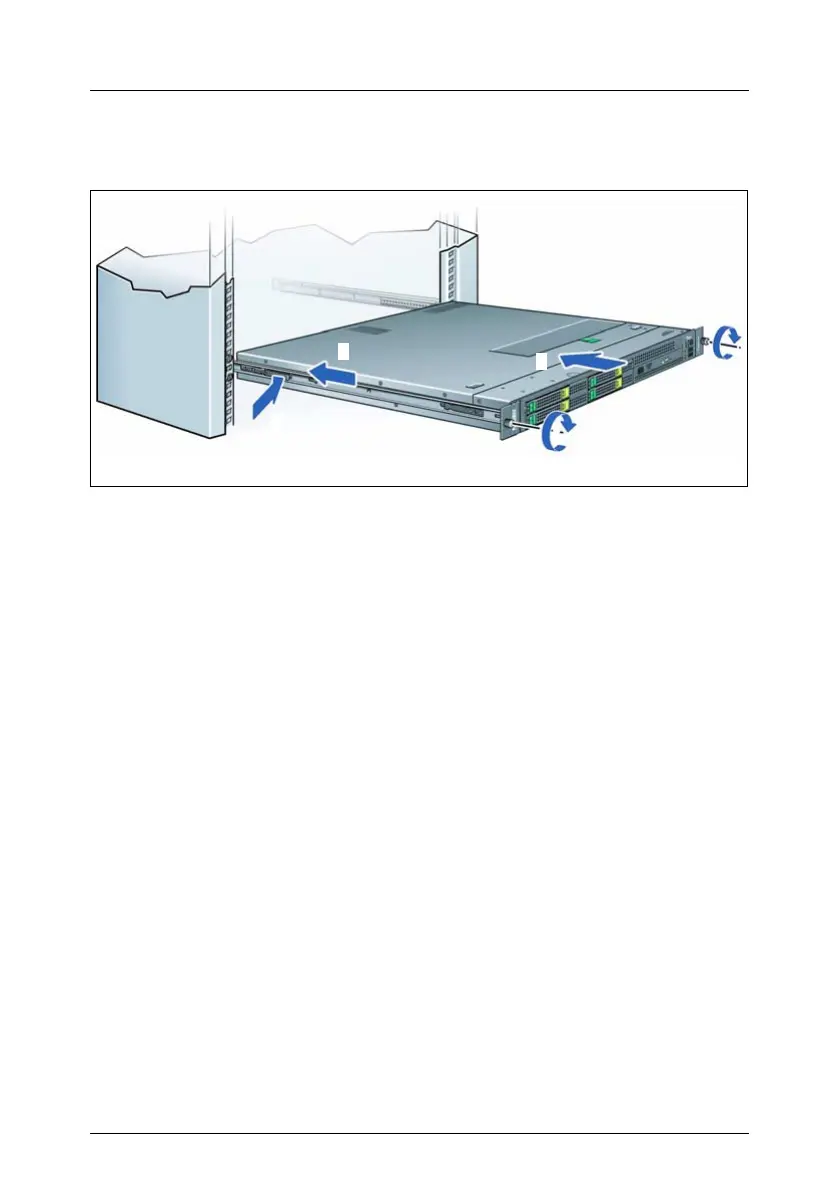

Figure 25: Installing the server in the rack
V CAUTION!
At least two people are needed to position the server in the rack.
Ê Push the prepared server into the rails that are attached to the rack until the
server rails engage.
I Ensure that the server is inserted horizontally and is not tilted.
Ê Press the safety springs in on both sides (2).
Ê Gently push the server as far as it will go into the rack (3).
Ê Fasten the server to the rack (4) using the two knurled screws (front panel).
Ê Plug in all plugs and switch the server on.
1
2
3
4
4
