5Main Memory
V CAUTION!
Please observe the safety information in the chapter “Safety Instructions”
on page 11ff.
The system board supports up to 32 Gbytes of main memory. 8 slots (2 slots
form a memory bank) are provided for the main memory. Each memory bank is
equipped with two 512-Mbyte, 1-Gbyte, 2-Gbyte or 4-Gbyte FBD533/PC2-
4200F or FBD667/PC2-5300F Fully Buffered DIMM memory modules.
ECC with memory scrubbing and with the Single Device Data Correction
(SDDC, Chipkill) function is standard.
5.1 Population rules

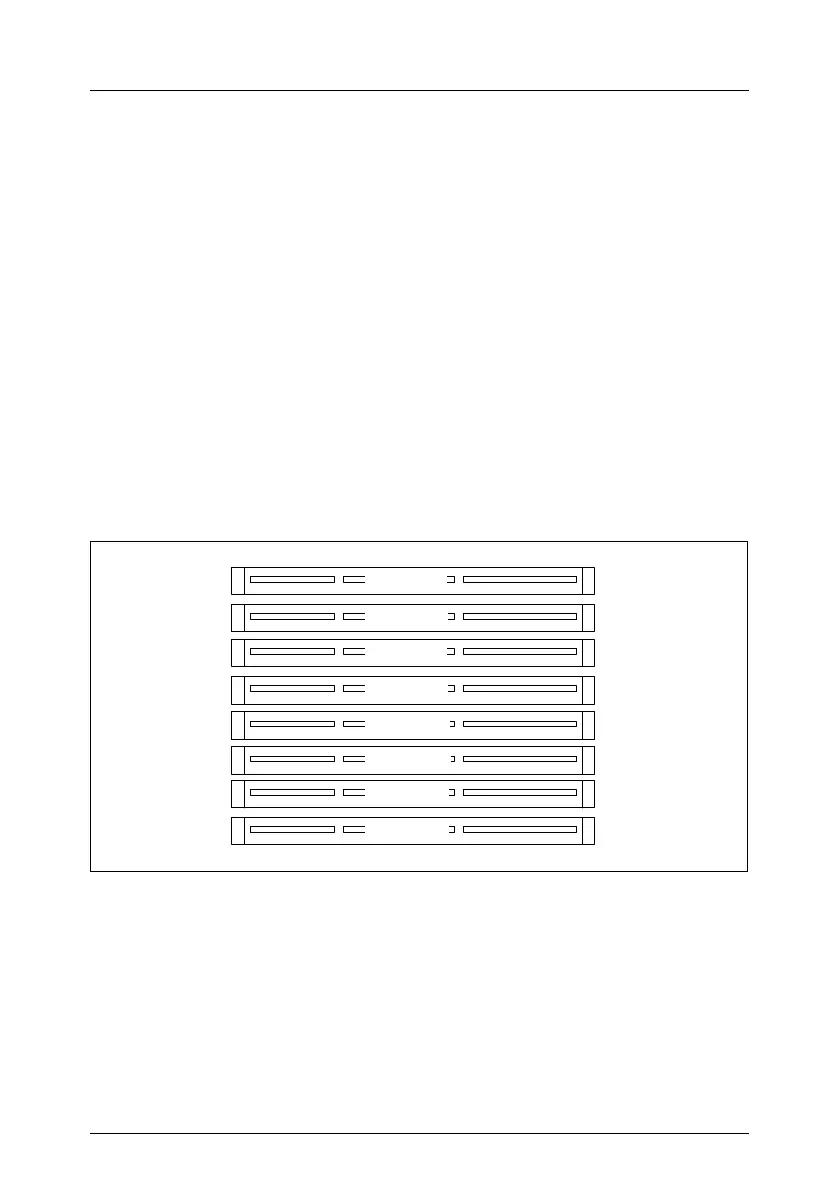

Figure 5: Structure of the main memory in memory banks and memory modules
– The memory modules have to be based on x4 or x8 organised
FBD533/PC2-4200F or FBD667/PC2-5300F fully buffered DIMM modules
and must be populated in pairs. You must only use memory modules
released by Fujitsu Siemens Computers.
– Each pair must consist of identical memory modules (2 way interleaved
mode).
FBD 2C
FBD 1C
FBD 2B
FBD 1B
FBD 2A
FBD 1A
FBD 2D
FBD 1D
