RX200 S3 Options Guide 39
Controllers in Non-Hot-Plug PCI Slots Installing controllers
8.1 Installing controllers
Ê Open the server as described in the chapter “Preparation” on page 17f.
Removing the riser card holder

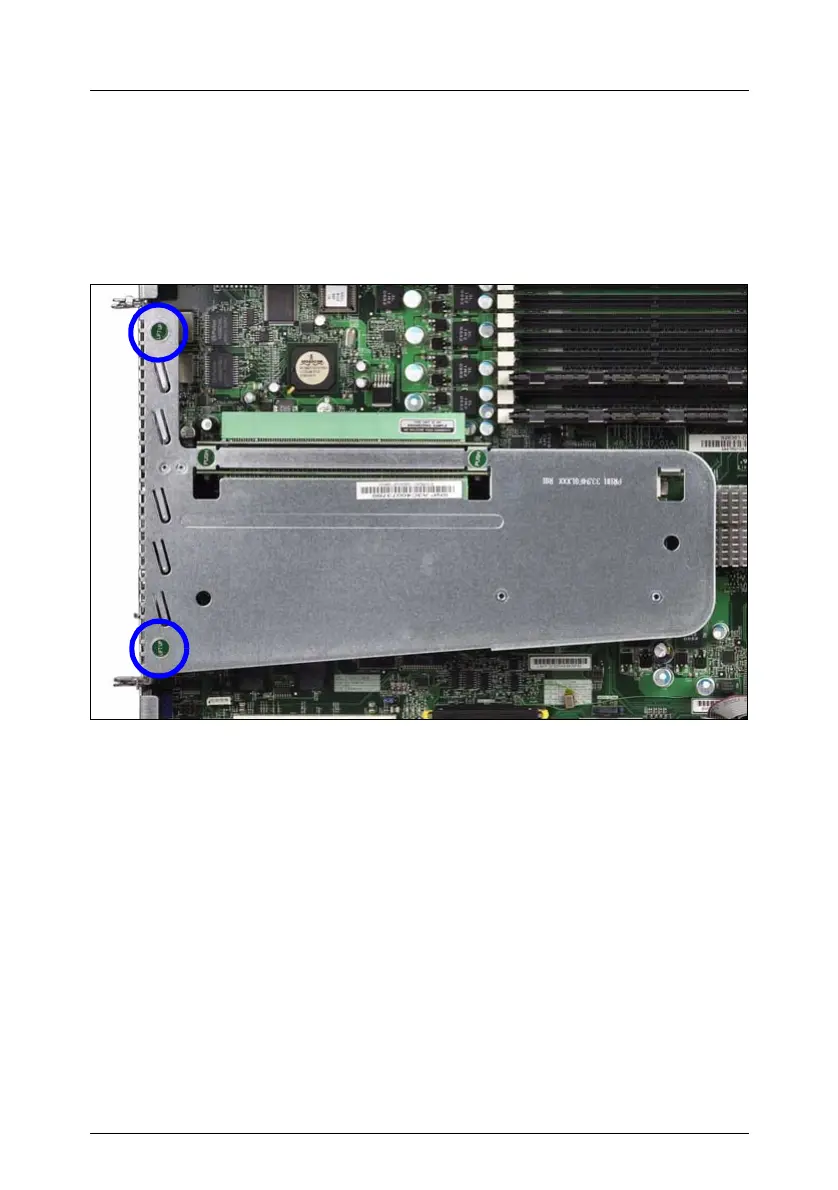

Figure 22: Removing the riser card holder
Ê Grasp the riser card at the two green points labeled with “LIFT UP” and pull
it up and out.
Installing a controller
Ê Please read the documentation supplied with the controller.
Ê Plug any necessary cables onto the controller.
Ê Remove the slot cover from the riser card holder.
I Keep the slot cover for future use. If you remove the controller, you
must reinstall the slot cover to comply with EMC regulations (regula-
tions on electromagnetic compatibility) and to satisfy cooling require-
ments and fire protection measures.
