RX200 S6 Operating Manual 103
CSS components
Ê Set the fan unit down on the outside of the server.
V CAUTION!
Never set a removed/defective fan down inside the server. Risk of
short circuit!
Mounting is performed in the reverse order.

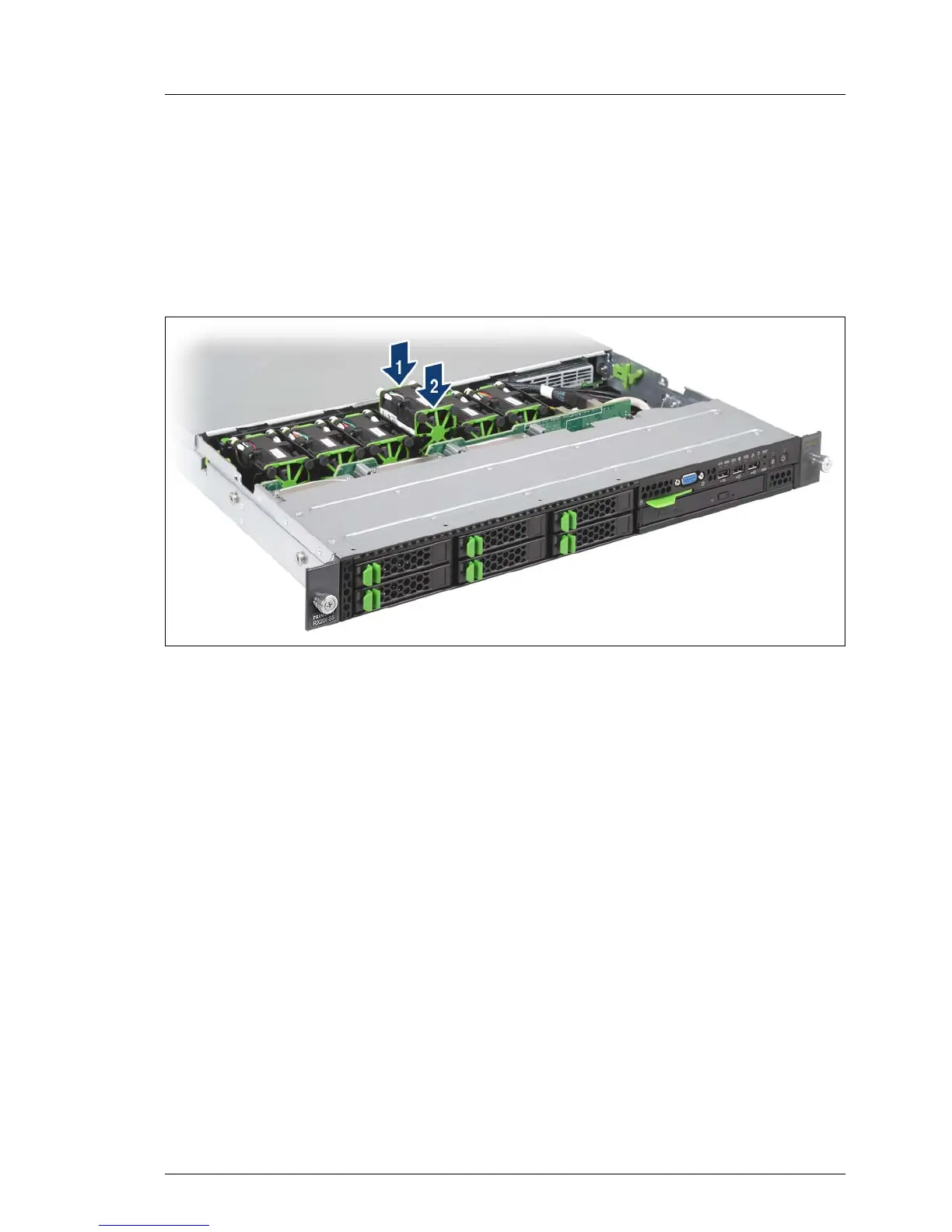

Figure 26: Installing the fans
When installing a new fan, first press down the side where the connections are
(1), and then press down the front (2).
I The new fans are measured with explicit commands in Server
Management. Depending on the result, the corresponding LED is set to
orange (fan is not in order).
Ê Return the fan cover to its position (see section "Opening/closing the fan
cover" on page 101).
