RX200 S6 Operating Manual 91
CSS components
Ê Connect the newly installed power supply unit (see section "Connecting the
server to the mains" on page 58).
8.1.1.3 Replacing the hot-plug power supply unit
V CAUTION!
Before replacing a non-defective hot-plug power supply unit in a non-
redundant configuration (only one power supply unit present), the server
must be switched off.
Ê Remove the cable of the defective power supply unit.

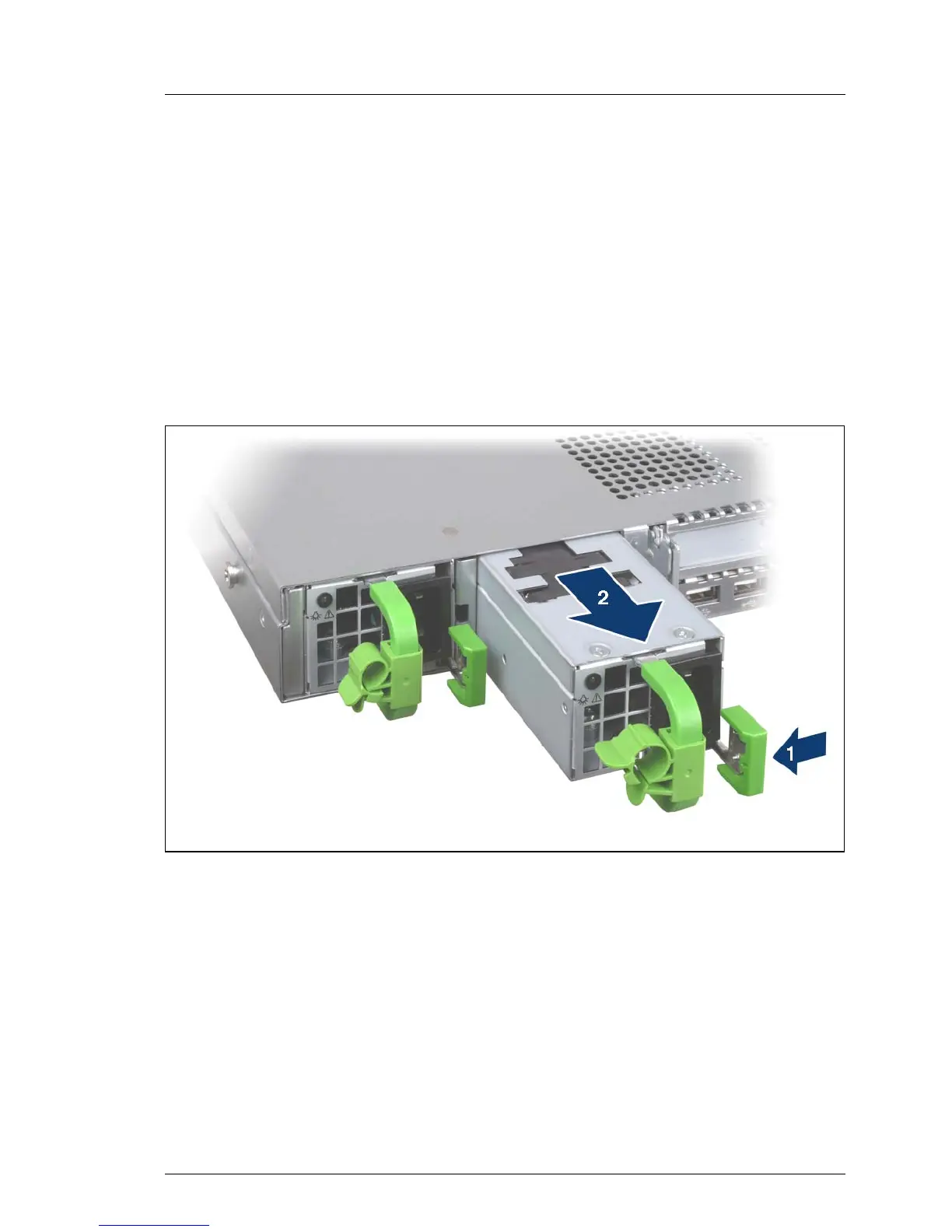

Figure 18: Unlocking and removing the power supply unit
Ê Push the green catch to the left (1).
Ê Pull the power supply unit out of its mounting location (2) by the handle.
Ê Install the new power supply unit in the empty mounting location (see section
"Installing the hot-plug power supply unit" on page 90).
Ê Connect the newly installed power supply unit (see section "Connecting the
server to the mains" on page 58).
