110 Operating Manual RX200 S6
CSS components
8.2.3 Replacing an expansion card
Identifying defective expansion cards

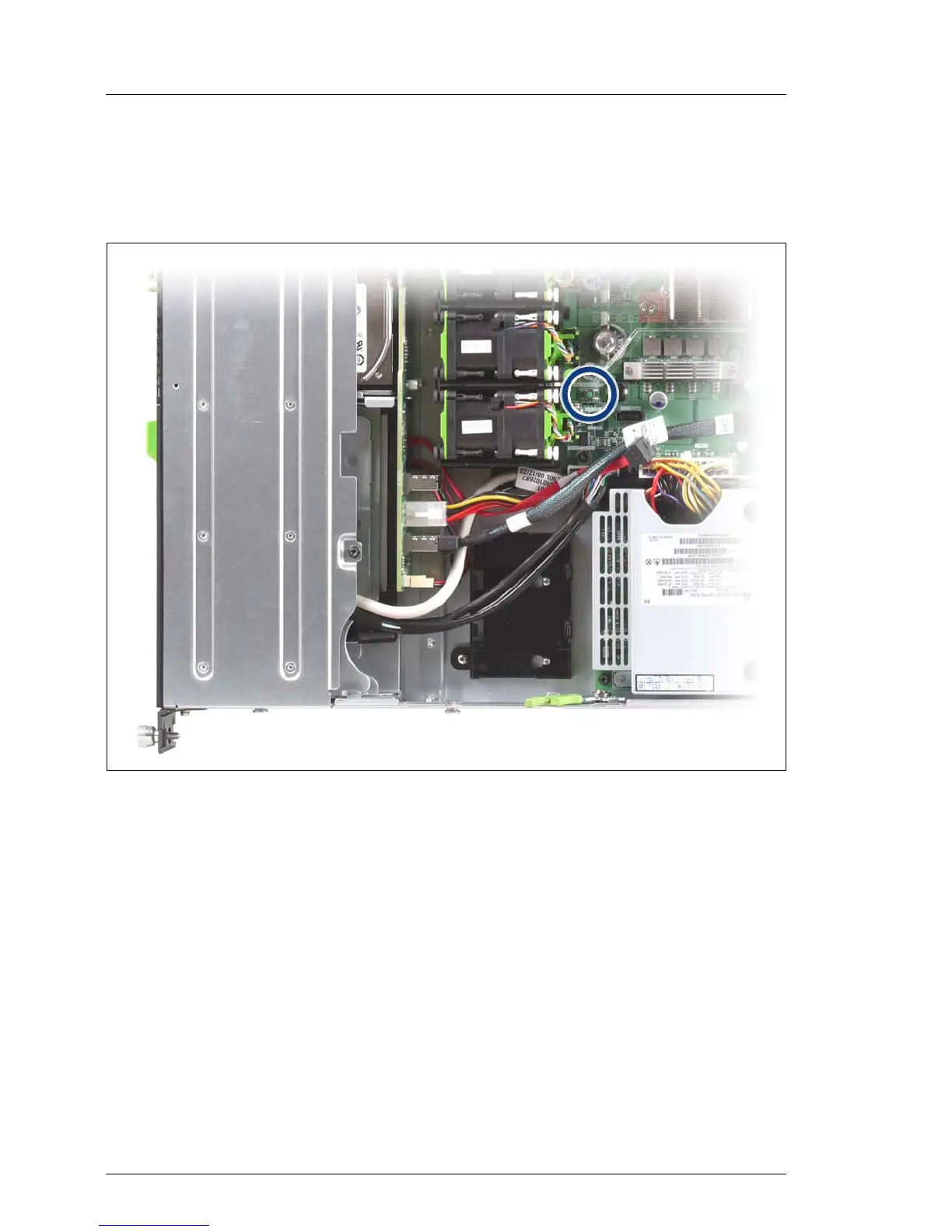

Figure 34: Indicate CSS button
Ê Press the Indicate CSS button.
The PRIMERGY Diagnostic LED of the defective CSS component lights up,
indicating which CSS component (in this case: expansion card) on the
system board needs replacing.
I There is no indicator for slot #3 (RAID controller).
