56 Operating Manual RX200 S6
Hardware installation
4.3 Connecting devices to the server
The connectors for external devices are on the front and rear of the server. The
additional connectors available on your server depend on the expansion cards
installed. For further information refer to the “Options Guide”.
The standard connectors are marked with symbols, and some are color-coded:

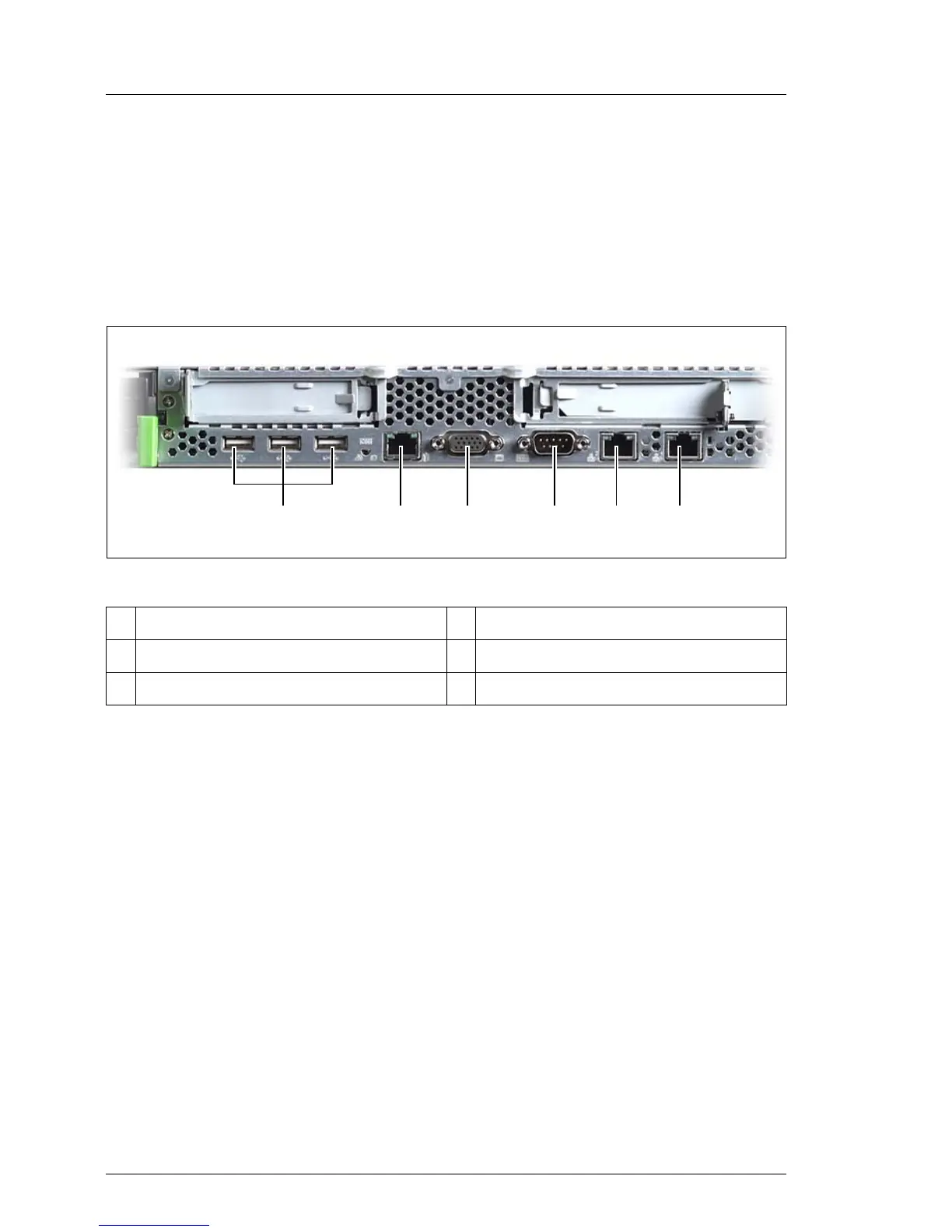

Figure 8: Connection panel on the rear
I Some of the devices that can be connected may require the installation
and setting up of special software (e.g. drivers) (see the documentation
for the connected device).
Ê Connect the desired devices to the server.
1 USB connectors 4 Serial connector COM
2 Management LAN connector 5 System LAN connector (LAN 2)
3 Video connector 6 Shared LAN connector (LAN 1)
햲 햴 햵 햶 햷햳
