RX200 S6 Operating Manual 105
CSS components
Ê Use the two green locking levers to unlock the housing cover.

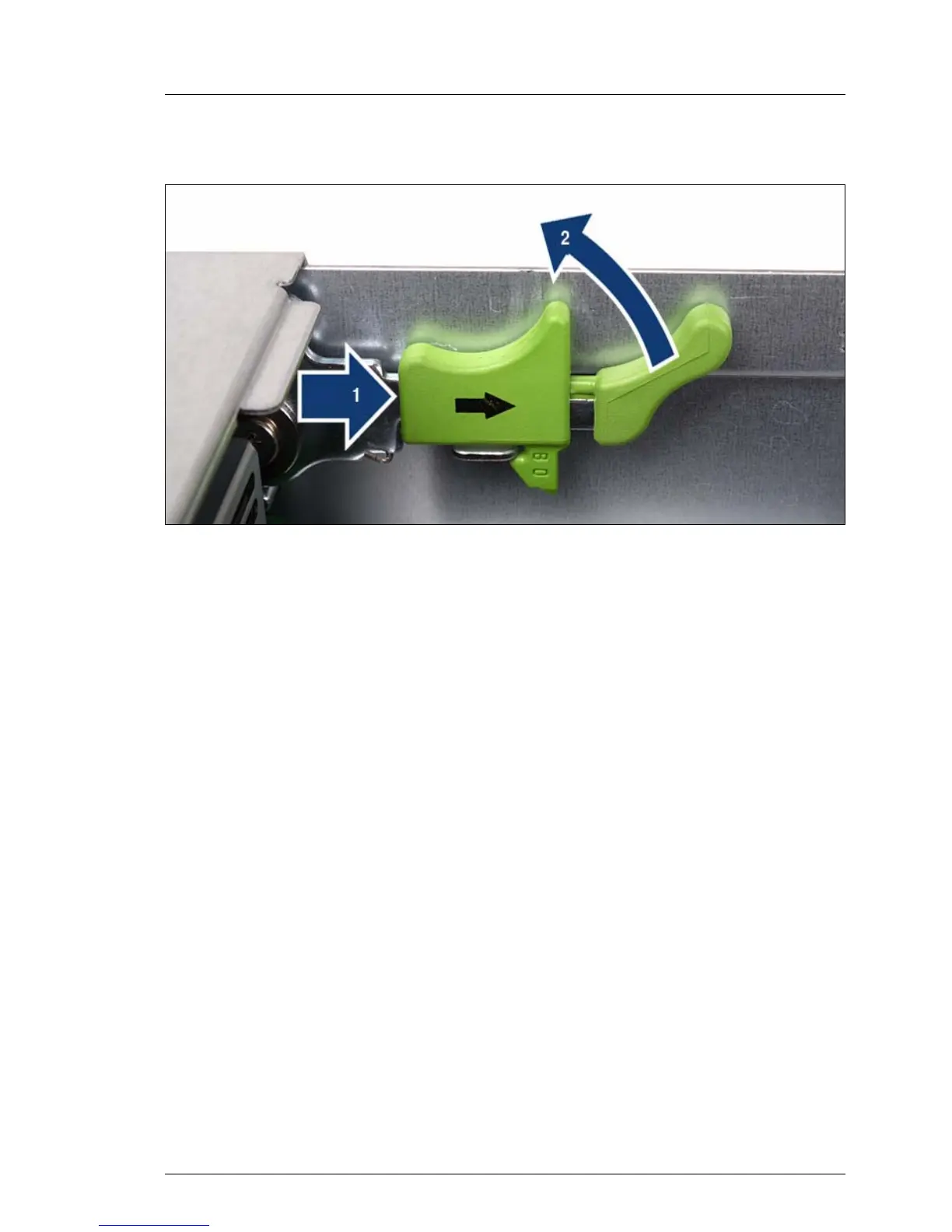

Figure 28: Using the locking levers
Ê Push the green locking levers in the direction of the arrow as shown (1) and
then move them up (2), so that the housing cover is pushed backward
slightly.
Ê Lift off the housing cover upwards.
