24 Operating Manual RX2520 M5
3.3 Connectors, controls and indicators
3.3.1 Connectors on the server
3.3.1.1 Server front

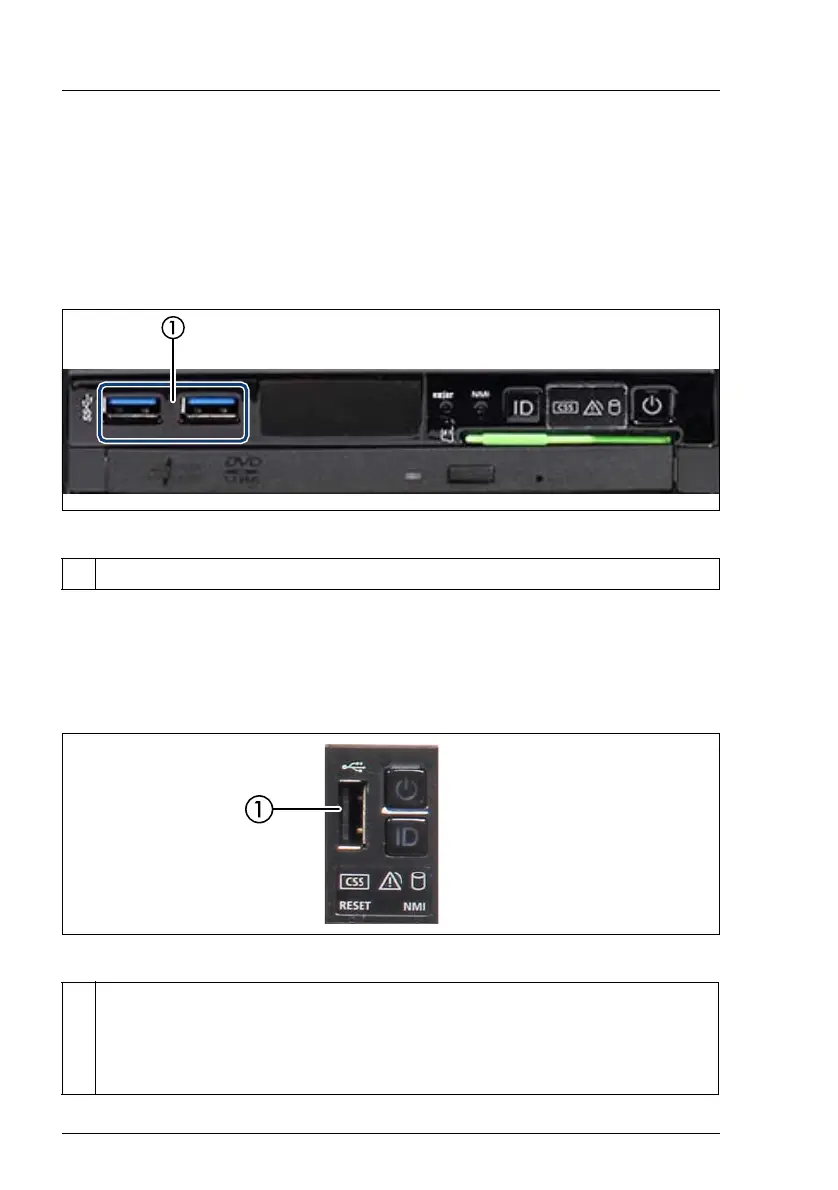

Figure 5: Connectors on the front panel module
12x 3.5-inch HDD version and 24x 2.5-inch HDD/SSD version
For this versions there is an USB 2.0 connector on the front panel on QRL
instead of the two above mentioned USB3.0 connectors.
Figure 6: Connectors on the front panel on QRL
1 2x USB 3.0 connectors
1 1x USB 2.0 connector
The USB 2.0 connector on the front supports activities carried out by the
service technician. The maximum length of the external cable is two
meters for the USB connector on the front.
