3.3.1.2 Server rear

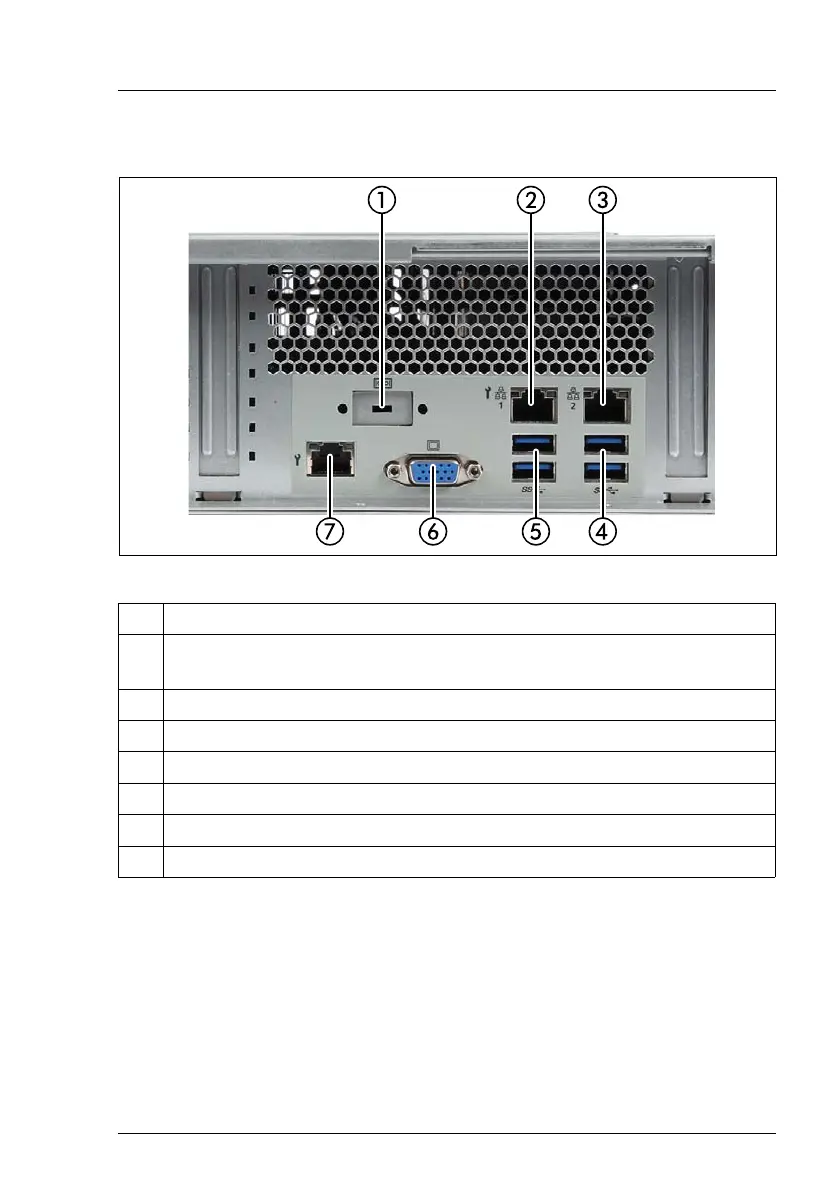

Figure 7: Connectors on the I/O panel
The corresponding indicators are explained in section "Indicators on the server
rear" on page 33.
I Depending on the BIOS settings, the shared LAN connector may also be
used as a management LAN connector. For more information, see the
corresponding BIOS Setup Utility reference manual.
I Some of the devices connected require special software (e.g. drivers)
(see documentation for the connected device).
No. Description
1 COM1 connector (optional, can be used as the standard interface or for
communication with iRMC)
2 Shared LAN connector (LAN1)
3 LAN connector (LAN2)
4 2x USB 3.0 connector
5 2x USB 3.0 connector
6 Video connector (VGA)
7 Management LAN connector (for iRMC S5 server management function)
